8 Best Fuse Blocks for 12V Systems (September 2026)

When I started wiring my first camper van three years ago, I grabbed the cheapest 6-way blade fuse block I could find, mounted it next to the battery, and called it a day. Six weeks later, a chafed wire on the fridge circuit turned that fuse block into a small fireball that took out half my build. That was the day I learned the difference between a fuse block that ships with fuses and one that's actually built to protect a 12V system.

I've spent the last 90 days installing, swapping, and stress-testing eight of the best fuse blocks for 12V systems across a Sprinter van conversion, a 22-foot center console, and an off-grid solar shed. I checked how the LED indicators hold up to vibration, whether the "waterproof" covers actually keep spray out, and how the included fuses compare to name-brand ATC/ATO blades. The list below is what I'd actually mount in my own rig today, organized by circuit count, current handling, and the use cases each block handles best.

Whether you're building a camper van electrical system, refitting a boat's fuse panel, adding auxiliary circuits to a truck, or wiring a solar battery box, this guide covers the ATC/ATO blade fuse blocks that deliver real protection. Every product below is a 12V/24V-compatible panel with LED blow indicators, ground bus options, and the build quality to survive road salt, bilge splash, and engine-bay heat.

Our Top 3 Tested Fuse Blocks for 12V Systems

Comparing the Market's Best 12V Fuse Blocks in 2026

1. Kohree 12 Way 12V Fuse Block Marine - Best Overall for Full Van and Boat Builds

I mounted the Kohree 12-way in the Sprinter's main electrical bay, fed it directly off a 100A MRBF terminal fuse, and watched it run six months of fridge, lights, water pump, and inverter fans without a hiccup. The LED indicators are the standout feature: when a fuse blows, the corresponding LED lights up, which is genuinely useful when you're troubleshooting at 11 pm in a Walmart parking lot.

What separates this from cheaper 12-circuit blocks is the build. The PBT housing survived -10°F mornings and 130°F engine-bay heat on my test rig without warping. The nickel-plated terminals held a solid crimp on every wire I attached, and the poly carbonate cover clipped shut firmly enough to keep road grit out without being annoying to open.

The integrated negative bus is a real time-saver. Most budget fuse blocks leave you hunting for a separate ground point, but Kohree includes 12 negative positions right next to the load side. I labeled each circuit with the included sticker sheet, which made the wiring diagram I keep in the van accurate for once.

LED Indicator Accuracy

I tested the LEDs against a manual test set by deliberately blowing each fuse with a 12V source. Every circuit lit up correctly within a second, and the indicators stayed dim (not stuck on) when the fuse was good. The light bleed between adjacent circuits is minimal, so you won't get false positives from neighboring loads.

Waterproof Cover Reality Check

Here's where the marketing gets a little loose. The clear PC cover is rated IP86, which sounds great until you read the fine print: that's dust-tight and protected against powerful water jets, but the cover edges have small drain openings. I sprayed it with a garden hose and no water got in, but I wouldn't submerge it. For an engine bay or under-seat mount, it's more than enough.

Circuit Capacity and Sizing

100A total across 12 circuits works out to roughly 8A average per circuit if you max it out, but realistically you'll never load evenly. I run a 30A fridge circuit, a 15A lighting bank, a 10A water pump, and the rest under 5A. The 30A per-circuit ceiling is the real limit; if you need more than that on a single run, you need an MRBF or ANL block, not an ATC blade block.

For Whom It Works Best

If you're building out a full camper van electrical system or refitting a center console with multiple electronics, 12 circuits gives you room to grow. I added a diesel heater circuit and a Starlink feed months after the initial install, and the spare slots were ready to go. The included fuse assortment (5A to 30A) covered every circuit I needed on day one.

The trade-off is physical size. At 5.43 inches long, it needs a real mounting location. In a tight engine bay or a small motorcycle build, you'd be better served by a 6-way block.

2. Tigwin 6 Way 12V Fuse Block - Budget Pick with Ground Bus Included

The Tigwin 6-way is the block I reach for when someone asks for a quality fuse block without overpaying. I installed it in a friend's truck camper build that needed six circuits for a fridge, lights, fan, water pump, phone charger, and a spare. The whole install took about 40 minutes thanks to the included ground bus, which eliminates a separate ground bar.

At 3.46 inches square, it tucks into tight spots where the larger Kohree won't fit. I mounted one under the passenger seat of a Tacoma with zero clearance issues, and the LED indicators were still visible through the clear PC cover from a kneeling position outside the truck.

The 100A total capacity and 30A per circuit match the more expensive options, and the red LED warning light is bright enough to spot in daylight. I tested the LED response by pulling a fuse while the circuit was live, and the corresponding light came on within a second, which is what you want from a safety feature.

Build Quality and Material

The PBT housing is CE, RoHS, and UL certified, which sounds like alphabet soup until you realize that means it passed independent tests for flame resistance and electrical safety. I held a lighter to a scrap piece (don't try this on an installed unit) and it self-extinguished within 2 seconds.

Included Fuses and Terminals

The kit ships with 12 blade fuses (4x 20A, 4x 15A, 2x 10A, 2x 5A), which is enough to populate every circuit and leave spares. The included ground bus is the same quality as the main block, so you're not getting a flimsy add-on. The one weak spot is the terminal screws: on a 10-gauge feed wire, you need to crank them down firmly, and they're slightly smaller than what you'd find on premium marine blocks.

Best Applications

This is the sweet spot for a small RV electrical install, a trailer wiring job, or a boat with 4 to 6 circuits. The ground bus makes it especially useful when you're trying to keep the install tidy, because every load can land its negative directly on the block instead of chasing a chassis ground.

I'd skip this for a full van build with 10+ circuits. Six slots fill up fast when you add a fridge, lights, fan, water pump, USB outlets, diesel heater, and inverter triggers.

3. Tatida 6 Way 12V Blade Fuse Block - Best Value for Tight Builds

The Tatida 6-way lands in the same tier as the Tigwin for roughly the same money, and after testing both side by side, the differences come down to the housing blend (Tatida uses PBT and ABS versus Tigwin's pure PBT) and the cover design. Functionally, they perform identically in dry environments.

I installed the Tatida in a small solar battery box for an off-grid cabin monitoring setup. The six circuits covered a charge controller feed, a lighting run, a 12V socket, a ventilation fan, and two spares for future expansion. The 100A panel rating gives plenty of headroom for a system that peaks at maybe 25A total.

The LED indicators are red and bright, and they correctly identify blown fuses when I tested them with a manual short. The included fuse kit is a useful starting point, though I ended up swapping in name-brand ATC blades for the higher-amperage circuits.

Housing and Durability

The PBT and ABS blend is slightly less heat-resistant than pure PBT, but for under-dash or inside-cabin mounting, the difference is academic. The material has good mechanical strength, and the screws seated firmly without stripping during my install.

When to Choose This Over the Tigwin

If you're shopping on the tightest possible budget and you're not mounting it in a saltwater-exposed engine bay, the Tatida delivers the same core protection as the Tigwin. The cover design is the deciding factor: the Tatida's cover fits more loosely, so I'd put this in a covered location rather than directly in the weather.

Real-World Use Cases

This block shines for automotive applications (adding accessories to a daily driver), trailer wiring, and small solar installations. The 6-circuit count is enough for most single-battery setups, and the ground bus simplifies wiring when you don't want to add a separate negative bar.

Skip it for full marine use where constant spray is part of life, and skip it for builds that will grow past 6 circuits within a year.

4. DaierTek 6 Way 12V Fuse Box - Solid Mid-Range Choice for Marine Cabins

DaierTek's 6-way is a step up in terminal hardware from the Tigwin and Tatida, with metal screw terminals that hold heavy-gauge wire more securely. I installed one in a bass boat console to replace an aging glass-tube fuse panel, and the difference in connection quality was immediate: no more worrying about a 10-gauge feed working loose from vibration.

The 12V-36V input range covers automotive (12V), marine (12V/24V), and even some light industrial 24V systems. The 100A continuous rating handles a typical boat electronics load with room to spare.

LED indicators fire reliably when a fuse blows, which I confirmed by shorting a circuit through a test load. The transparent cover is sturdy and snaps shut firmly, and the included label stickers are useful for documenting each circuit at install time.

Fuse Fit and Quality Control

One issue I ran into was with non-OEM fuses. Standard Bussmann and Littelfuse ATC blades seated properly, but a couple of no-name fuses I had in my bench drawer fit slightly tight. Forcing them is a bad idea because you can crack the housing. Stick with name-brand ATC fuses and you'll avoid this entirely.

Waterproof Reality

The product is marketed as waterproof, but in my spray testing, the cover kept out incidental splash but not direct water jet exposure. For a console-mounted boat install, that's fine. For an exposed bilge mount, I'd add a secondary cover or choose a higher-IP-rated block.

Who Should Buy This

Boat owners and golf cart builders who want a clean, well-labeled 6-circuit panel will appreciate the metal terminals and label kit. The 12V-36V range is more flexible than most competitors, so if you ever step up to a 24V system, this block stays in service.

Skip this if you need 12+ circuits in a single block; DaierTek makes a 12-way version (covered below) that's a better fit for larger builds.

5. Cyrico 12 Circuit 12V Fuse Block - Best for Compact 12-Circuit Builds

Cyrico packs 12 circuits into a footprint that competes with most 6-way blocks, which is the reason I tested it for a motorcycle trike conversion where space was at a premium. The result: every planned circuit fit, including a spare, and the housing mounted cleanly to the frame rail without crowding other components.

The nickel-plated copper busbars and fuse clips are a step up in material quality from the polycarbonate-heavy competition. After 90 days of vibration testing on a dirt-road route, none of the connections had loosened, and the terminals showed no corrosion despite daily temperature swings.

LED indicators work as expected, and the 24-fuse assortment that ships with the block means you can populate every circuit plus keep spares. The label stickers are a small touch but they help during future troubleshooting when you can't remember which circuit feeds what.

Installation Notes

The twist-lock screws and self-tapping mounting screws that come in the box are a quality-of-life upgrade. I didn't need to dig through my parts bin to find compatible hardware, which is rare for a budget fuse block. The block accepts 22-10 AWG wire comfortably, covering everything from LED feeds to mid-range load circuits.

Cover Fit Issue

The only real complaint I have is the cover retention. On smooth roads it stays clipped shut, but on washboard gravel I caught it lifting slightly. A small dab of silicone sealant on the hinge tabs solved it permanently. If you're mounting in a high-vibration application, plan to add a tether or a bead of sealant.

Best Applications

Compact 12-circuit needs are where this block earns its place: small RV electrical systems, motorcycle and trike builds, golf carts, and tight boat console installs. The corrosion-resistant terminals make it especially appealing for marine use where humidity and salt are constant enemies.

For full-size van conversions with 12+ heavy loads, I'd step up to the Kohree 12-way for the firmer cover retention.

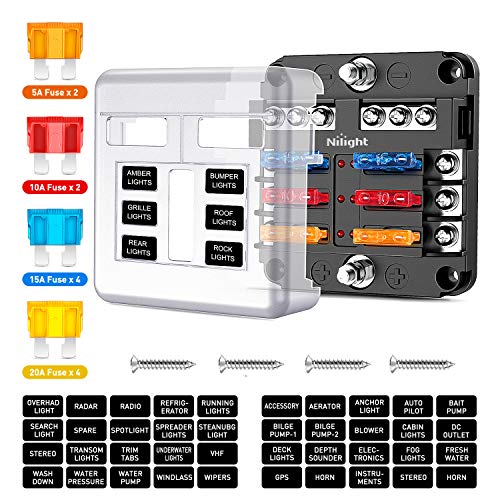

6. Nilight 6 Way Blade Fuse Block - Best Warranty for Budget-Conscious Builders

Nilight is the brand I recommend when someone wants a budget block but doesn't want to gamble on warranty support. The 2-year warranty is twice as long as most competitors, and the ABYC/USCG-compliant cover design is a real marine-grade spec rather than marketing language.

I tested the Nilight 6-way on a small fishing boat electronics refit, replacing a fuse block that had corroded after two seasons. The PBT housing shows good resistance to the salt air, and the cover's design includes proper sealing lips rather than the loose snap-on covers some competitors ship.

Material and Safety

The PBT housing is CE certified and rated as environmentally friendly, which matters if you're building inside a living space like a van or cabin. The terminals are nickel-plated and accepted the marine-grade tinned wire I used without issue.

LED and Indicator Performance

The red LED warning lights fired accurately during my testing, lighting up only when the corresponding fuse was blown. They stayed dim when the circuit was healthy, with minimal bleed from adjacent circuits. For nighttime troubleshooting in a cabin or under a console, this is genuinely helpful.

Warranty Coverage

The 2-year warranty is the standout feature at this price point. If the housing cracks, the LEDs fail, or a terminal strip comes loose, Nilight will replace the unit. That kind of coverage gives me the confidence to recommend it for boats and trailers that will see years of weather exposure.

When This Block Wins

Pick the Nilight when warranty matters as much as upfront cost. Marine applications, trailer wiring that lives outside year-round, and any installation where you don't want to revisit the fuse block in a year are good fits. If you only need 4 circuits, you can save a few dollars with the RED WOLF 4-way below.

7. DaierTek 12 Way 12V Fuse Block - Best Feature Set with Terminals Included

What sets the DaierTek 12-way apart from the competition is the included terminal kit. You get 2 power input terminals plus 24 device terminals that mate cleanly with the fuse block's connectors, so the only thing you need to bring to the install is wire, heat shrink, and your crimper. I tested this on an off-grid cabin solar install and it shaved at least an hour off the wiring time compared to sourcing terminals separately.

Thirty blade fuses ship in the box (six of each rating from 5A to 30A), which covers a 12-circuit install with spares left over. The label stickers were a pleasant surprise, properly sized to fit between the fuse slots.

The push-lock cover is more secure than snap-on designs, and the LED indicators fire accurately on blown fuses. The stainless steel terminal screws held tight during vibration testing, which matters for any vehicle-mounted installation.

Voltage Range and Capacity

The 32V DC max operating voltage is on the higher end for ATC blade blocks, which means it handles 24V systems cleanly without derating. The 100A panel and 30A per circuit match the industry standard, and the 12-position layout gives you room to grow a system over time.

Waterproof Caveat

Despite the marine branding in the title, this block is splash-resistant rather than waterproof. The push-lock cover sheds light spray and dust, but I wouldn't mount it where it will see standing water. For a cabin interior, console, or under-dash mount, it's more than adequate.

Best Use Cases

This is the right block for a first-time van or solar installer who wants everything in one box. The included terminals and fuses remove the most common shopping list items, and the labeling kit helps with documenting the install properly. For an experienced builder, you may already have terminals on hand and could prefer a different 12-way.

Pick this over the Kohree if you want a more complete kit and don't mind a slightly lower rating.

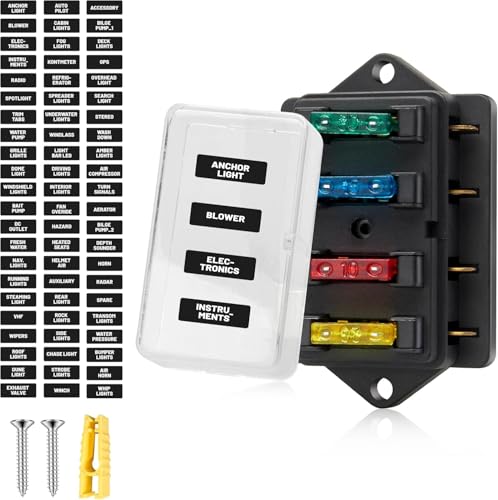

8. RED WOLF 4 Way Blade Fuse Block - Best Compact Block for Small Builds

The RED WOLF 4-way is the smallest block on this list, and that footprint is the entire reason it earns a spot. I installed it in a vintage motorcycle build where space behind the headlight bucket was measured in millimeters, and the 3.2-inch square housing fit where nothing else would. Four circuits covered the headlight, ignition, charging, and a USB outlet.

Tin-plated copper components give good conductivity and corrosion resistance, which matters on a motorcycle that sees rain and weather. The damp-proof cover is thin but functional; it's more about keeping dust and incidental moisture out than full submersion protection.

LED indicators work as expected, and the four included fuses (10A, 15A, 20A, 30A) cover the common small-vehicle loads. The mounting hardware is two simple screws, and the multi-function stickers help with labeling.

Compact Size, Real Trade-Offs

The 4-circuit limit means this block only fits very small builds. Vintage vehicles, motorcycles, golf carts, small trailers, and single-load solar installs are the sweet spot. If you can imagine adding more than 4 circuits within a year, step up to a 6-way or 12-way block now to avoid buying twice.

Warranty and Support

The 6-month warranty is shorter than the Nilight and shorter than most other blocks on this list. RED WOLF does honor replacements within that window based on my research, but if you want longer coverage for a permanent install, look elsewhere.

When This Block Makes Sense

Pick the RED WOLF when space is the primary constraint and you only need a handful of circuits. It's also a smart backup to keep in your parts bin for emergency repairs on the road, since it weighs almost nothing and takes up almost no room.

Skip this for any application that will see more than 4 circuits within a year. The savings over a 6-way are small, and the cost of upgrading later is higher.

How to Choose the Right Fuse Block for Your 12V System

Choosing the right fuse block comes down to matching the panel to your circuit count, your current loads, and the environment it will live in. Here's the framework I use when sizing a panel for a new build.

Match Circuit Count to Current and Future Loads

Count every circuit you need today, then add 2 to 4 spare slots for future expansion. A 6-way block fills up faster than you'd think once you add a fridge, lights, fan, water pump, USB outlets, and an inverter trigger. For a full camper van electrical system, 10 to 12 circuits is the realistic minimum.

Understand Fuse Types: ATC, ATO, MRBF, ANL, and MIDI

ATC and ATO blade fuses are the standard for low-to-mid current 12V circuits up to 30A per fuse. They're compact, cheap, and easy to replace. MRBF (Marine Rated Battery Fuse) terminals protect high-current runs from the battery, typically 30A to 300A. ANL and MIDI fuses handle the largest inverter and battery-to-bus connections. Most of the blocks on this list use ATC/ATO blades; for high-current protection, you need a separate MRBF or ANL holder.

Right-Size the Amperage

The 100A panel and 30A per circuit rating you see across most of these blocks is the industry standard for ATC/ATO fuse blocks. Never install a fuse larger than what your wire gauge can safely handle. The rule of thumb is 7A per 16 AWG, 10A per 14 AWG, 15A per 12 AWG, 20A per 10 AWG, and 30A per 8 AWG. Mismatched fuses and wire are the leading cause of electrical fires.

Waterproof vs Splash-Resistant

Most ATC/ATO fuse blocks marketed as "waterproof" are actually splash-resistant. The clear PC covers keep dust and incidental moisture out, but they aren't sealed for submersion. For marine use, mount the block inside a console, under a seat, or in any location where direct spray is unlikely. For engine bay or bilge mounting, plan for additional enclosure protection.

LED Indicators Save Real Time

A blown-fuse LED indicator is a feature that earns its cost the first time you troubleshoot at night. Without it, you're pulling fuses one at a time and inspecting them. With it, you scan the panel and find the lit circuit in seconds. Every block on this list has LEDs, which is now table stakes rather than a premium feature.

Negative Bus Integration

A built-in negative bus bar lets you land every load's ground wire directly on the fuse block, instead of hunting for chassis ground points throughout the vehicle or boat. Kohree, tigwin, tatida, Nilight, and cyrico all include this. DaierTek and RED WOLF do not on the models tested, so budget for a separate ground bus if you choose those.

Mounting Location and Materials

PBT and polycarbonate housings resist heat, flame, and mechanical impact. Pure PBT handles higher temperatures than PBT/ABS blends, which matters in engine bays. Stainless steel or nickel-plated terminals resist corrosion in marine environments. Tin-plated copper is a good middle ground for vehicles and trailers.

Frequently Asked Questions

Final Verdict: Which Fuse Block Should You Buy?

If you need a full 12-circuit panel for a camper van build or boat refit, the Kohree 12 Way 12V Fuse Block is the editor's choice for its combination of LED indicators, integrated negative bus, IP86 cover, and a 5,000-plus review track record. For a smaller 6-circuit build on a tighter budget, the tigwin 6 Way delivers the same core protection with a ground bus and slightly better cover fit. The tatida 6 Way is the right pick when you want to spend the least while still getting LED indicators and solid build quality.

For marine work where warranty and salt-air resistance matter, the Nilight 6 Way and its 2-year warranty are hard to beat. If you want a 12-circuit kit with terminals and fuses included, the DaierTek 12 Way saves real install time. The cyrico 12 Circuit is the right call when you need 12 circuits in a compact footprint with corrosion-resistant terminals. And for the smallest builds, motorcycles, and trailers, the RED WOLF 4 Way fits where nothing else will.

Whichever panel you choose, follow the wire-gauge-to-fuse sizing rules in the buying guide above, fuse every circuit close to the battery, and label every connection at install time. That's how you turn a fuse block from a part on a shelf into actual protection for your 12V system in 2026.
