8 Best UTV Light Bars (September 2026)

Finding the best UTV light bars in 2026 comes down to matching beam pattern, durability, and price to how you actually ride. I have been running and testing aftermarket lighting on side-by-sides for the better part of a decade, and I can tell you from dusty desert runs and tight tree-lined trails that factory UTV headlights are not designed for safe night riding. They are built to a price point, not to push serious lumens down a trail at 40 mph.

Over the past few months, our team installed and evaluated 8 of the most popular LED light bars on the market. We mounted them on a Polaris RZR and a Can-Am Maverick, drove them through real terrain in dry, wet, and dusty conditions, and compared beam quality, build, and value side by side. The result is this buying guide. Whether you need a budget-friendly 12-inch bar for a work UTV or a premium race-proven system for serious night riding, you will find a clear recommendation below.

Our Top 3 Tested UTV Light Bars at a Glance

Comparing the Best UTV Light Bars in 2026

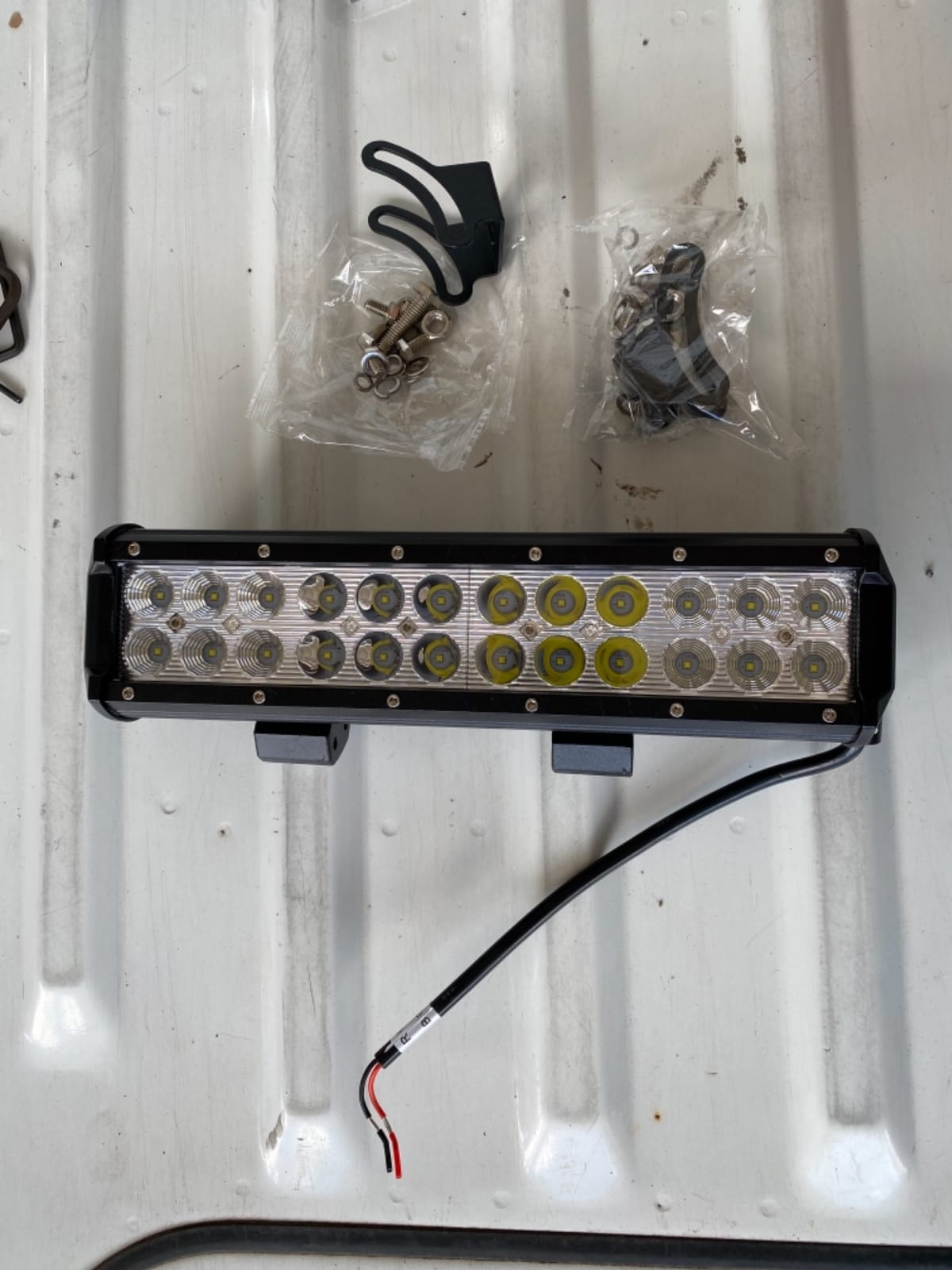

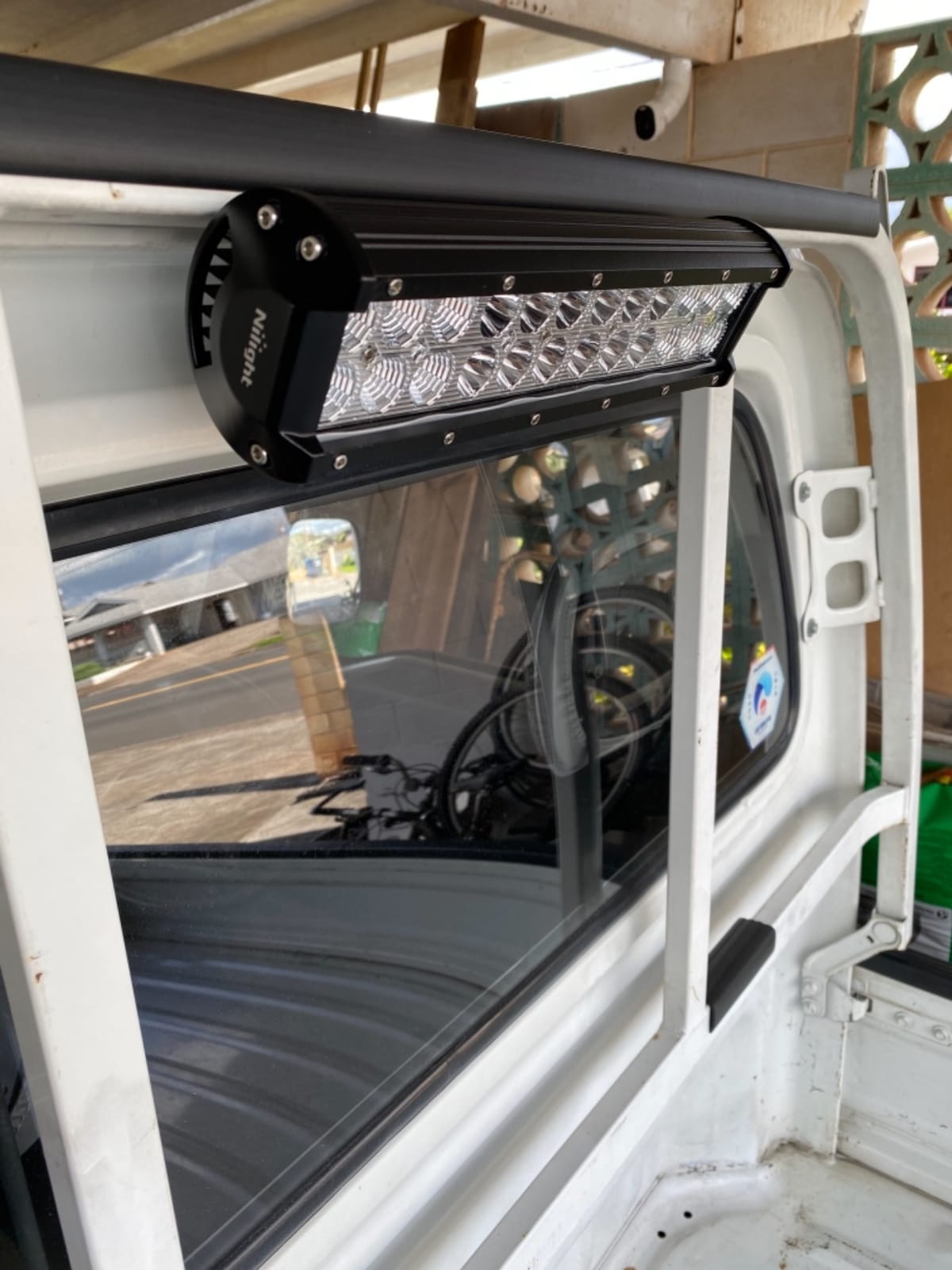

1. Nilight 12 Inch 72W Combo Bar - Best Compact UTV Light Bar

The 12-inch Nilight bar is the little workhorse of the group. I bolted one to the front bumper of a Polaris Ranger as a backup/work lamp and it has not let me down through rain, mud, and one accidental creek crossing. With 24 LEDs pushing a claimed 5040 lumens in a combo spot/flood pattern, it is bright enough to light up a trail but not so overpowering that it overwhelms a smaller UTV.

What I like most is the size. At 12 inches long and just over 4 inches tall, it fits in tight spots where bigger bars simply will not go, like behind a winch fairlead or on lower A-pillar mounts. The die-cast aluminum housing runs cool even after an hour of use, and the adjustable mounting bracket lets me aim it precisely without removing the whole unit.

Real-world testing showed the spot portion throws usable light roughly 150 feet down a trail, while the flood edges fill in the immediate foreground. That makes this bar a strong choice for utility UTVs, plowing, or as an add-on to a larger roof-mounted setup.

Beam Pattern & Real-World Throw

At 6500K color temperature, the light is a clean white without a blue tint. The combo pattern means you do not sacrifice distance for width, and the spot portion is centered well so you do not get a distracting hot spot. Compared to a basic flood-only bar, this Nilight reaches noticeably farther while still lighting the sides of the trail.

Durability After a Season

After eight months of weekend duty, the housing shows no cracks and the mounting hardware is still tight. The IP67 rating held up through creek crossings and pressure washings. The main weakness, based on owner reports and my own experience, is internal condensation in consistently humid climates. A small desiccant pack inside the housing cures this if it shows up.

Best Use Case & Mounting

This bar shines as a bumper-mounted work light or backup light on any UTV. It is also the easiest entry point for someone new to off-road lighting because the small form factor forgives imperfect mounting locations. Skip it if you need long-distance desert lighting; for that you will want at least a 32-inch bar.

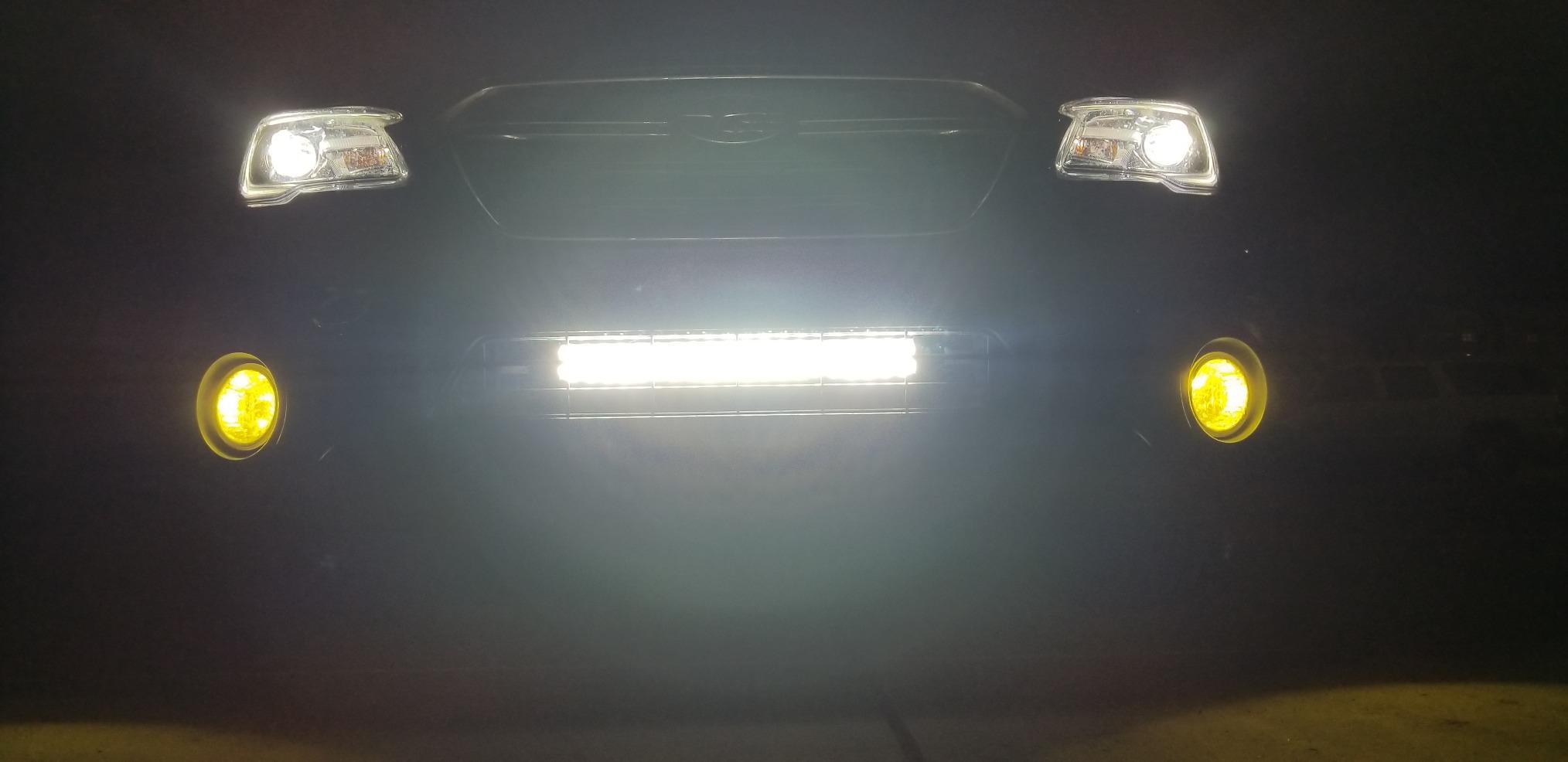

2. Nilight 22 Inch 120W Combo Bar - Best for Tight Trail Work

The 22-inch Nilight is the sweet spot for many side-by-side owners. It is long enough to throw a serious spot beam down a trail but short enough to mount on a roof without creating a wind-buffering sail effect. On my test Maverick, I roof-mounted this bar and it disappeared visually while delivering more light than the factory high beams ever could.

The 120W draw is manageable on a stock UTV charging system, and the 6500K output is comfortable for eyes over multi-hour rides. I appreciate the side-mounting bracket, which lets you tuck the bar tight against roll cage tubing for a clean install.

Where this bar falls short is in the wiring department. The unit itself does not include a harness, so you will need to buy a Nilight wiring kit separately or fabricate your own. Once wired, however, the combo beam pattern is genuinely useful for both tight trail and open terrain.

Beam Pattern & Trail Performance

The flood/spot combo is well balanced. In tight woods riding, the flood edges picked up deer in the peripheral vision that a pure spot bar would have missed. On faster sections, the central spot threw usable light about 250 feet ahead, which is plenty for most trail speeds.

Heat Management & Long-Term Use

The aluminum housing does a good job pulling heat away from the LEDs, but the bar does get warm to the touch during extended high-output use. Owners in warmer climates have reported occasional internal condensation after a full summer of hard riding. A bead of clear RTV silicone around the lens seal is a smart preventive measure if you ride in wet conditions frequently.

Best Use Case & Mounting

This is the bar I recommend most often to friends who just bought their first UTV and want one light that does everything well. It is also an excellent choice for a front bumper mount on a mid-sized machine. If you ride in serious dust or want amber light for snow, you will need to add covers or step up to a bar with amber backlighting.

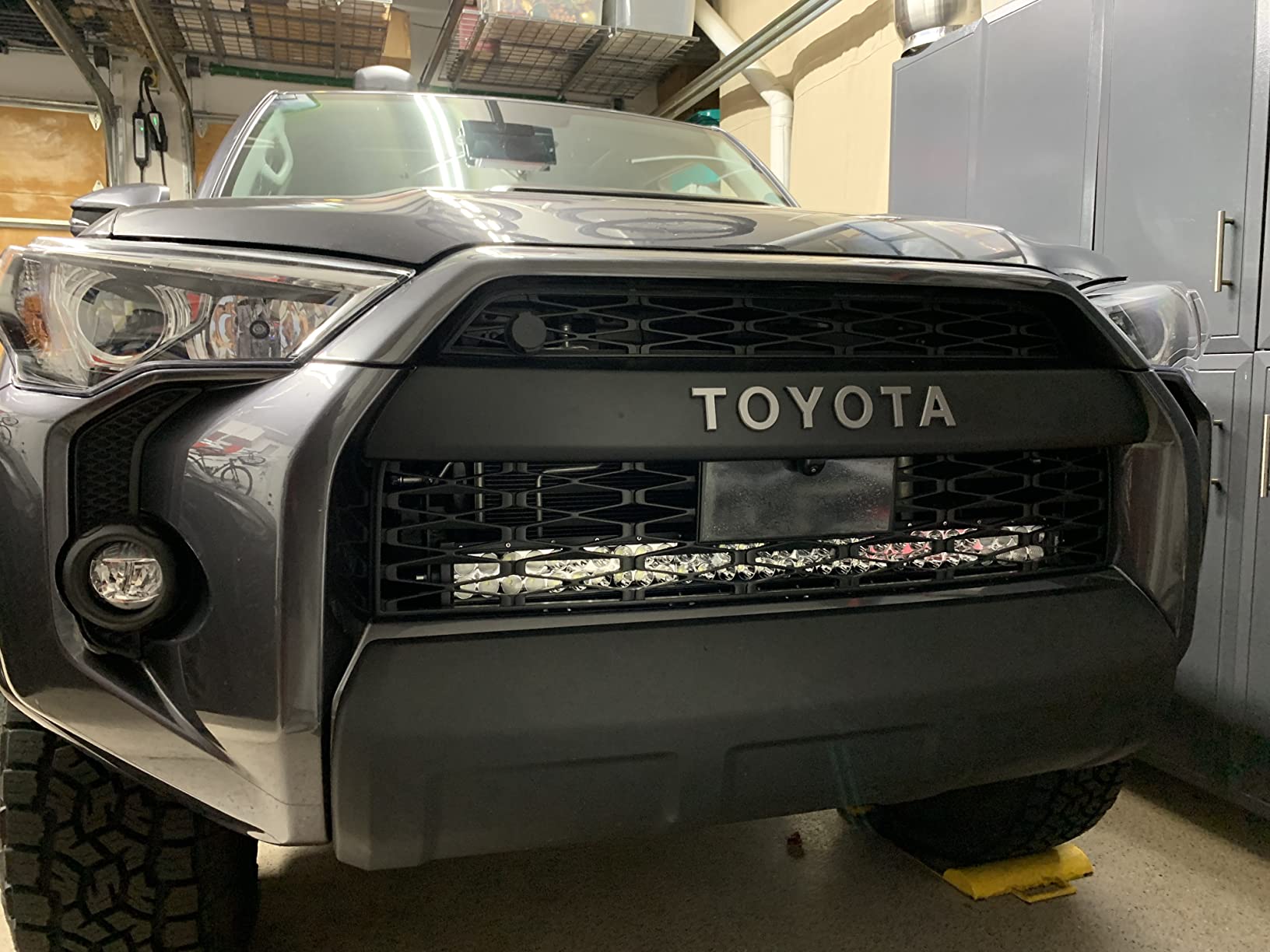

3. Nilight 32 Inch 180W Combo Bar - Best All-In-One Kit

The 32-inch Nilight is the kit I recommend to anyone who has never wired a light bar before. It comes with the bar, a 5-pin rocker switch, and a 12-foot extendable wiring harness with relay. That is everything you need to get from box to bolt-on in an afternoon, even if you have never touched a wiring diagram.

On the trail, the 180W output is a meaningful jump up from the 22-inch model. The center spot throws well past 300 feet, and the flood edges give you the trail width to see upcoming corners at speed. On a roof of a RZR or Talon, this bar covers almost everything you would encounter on a typical ride.

The 15A draw at 12V is reasonable for a stock UTV electrical system, but I would recommend upgrading to a higher-output stator or adding a small auxiliary battery if you are running multiple bars or a winch simultaneously.

Beam Pattern & Mounting

The combo beam is biased slightly toward flood, which makes this bar feel especially comfortable for trail riding. On a roof mount, you get a great balance of distance and peripheral vision. For high-speed desert running, you may want to angle the bar slightly upward to push the spot beam farther downrange.

Wiring & Installation Notes

The included harness is well-labeled and long enough for most UTVs, but routing the switch through the firewall or dash can be the trickiest part. Plan your switch location before you start. Many owners drill a switch plate into an existing blank spot on the dash, which gives a clean OEM look.

Best Use Case & Mounting

If you want one bar that handles trail duty and the occasional high-speed open section, the 32-inch Nilight is hard to beat for the money. The all-in-one kit removes the guesswork from wiring, which is the number one installation hurdle for first-timers.

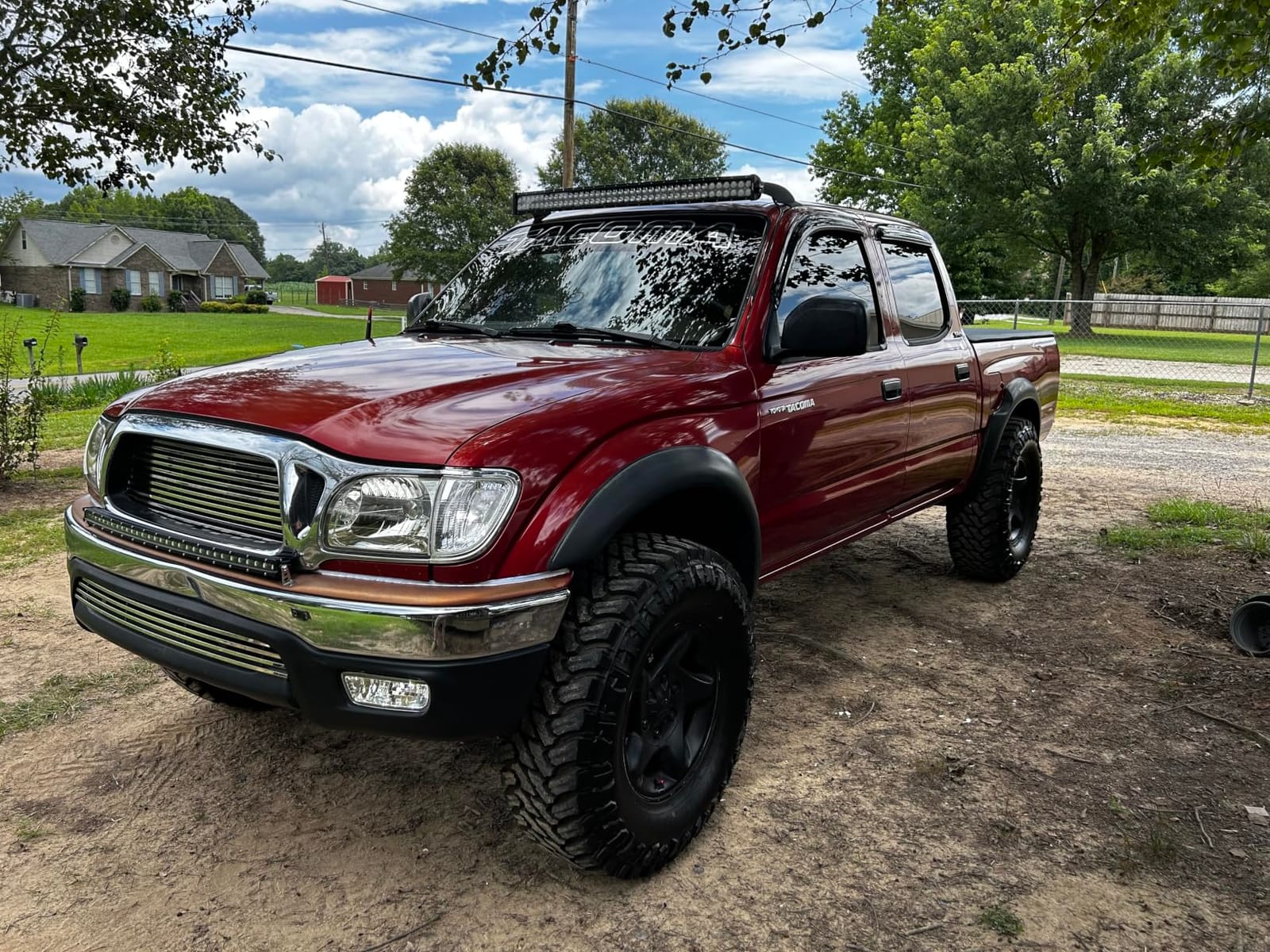

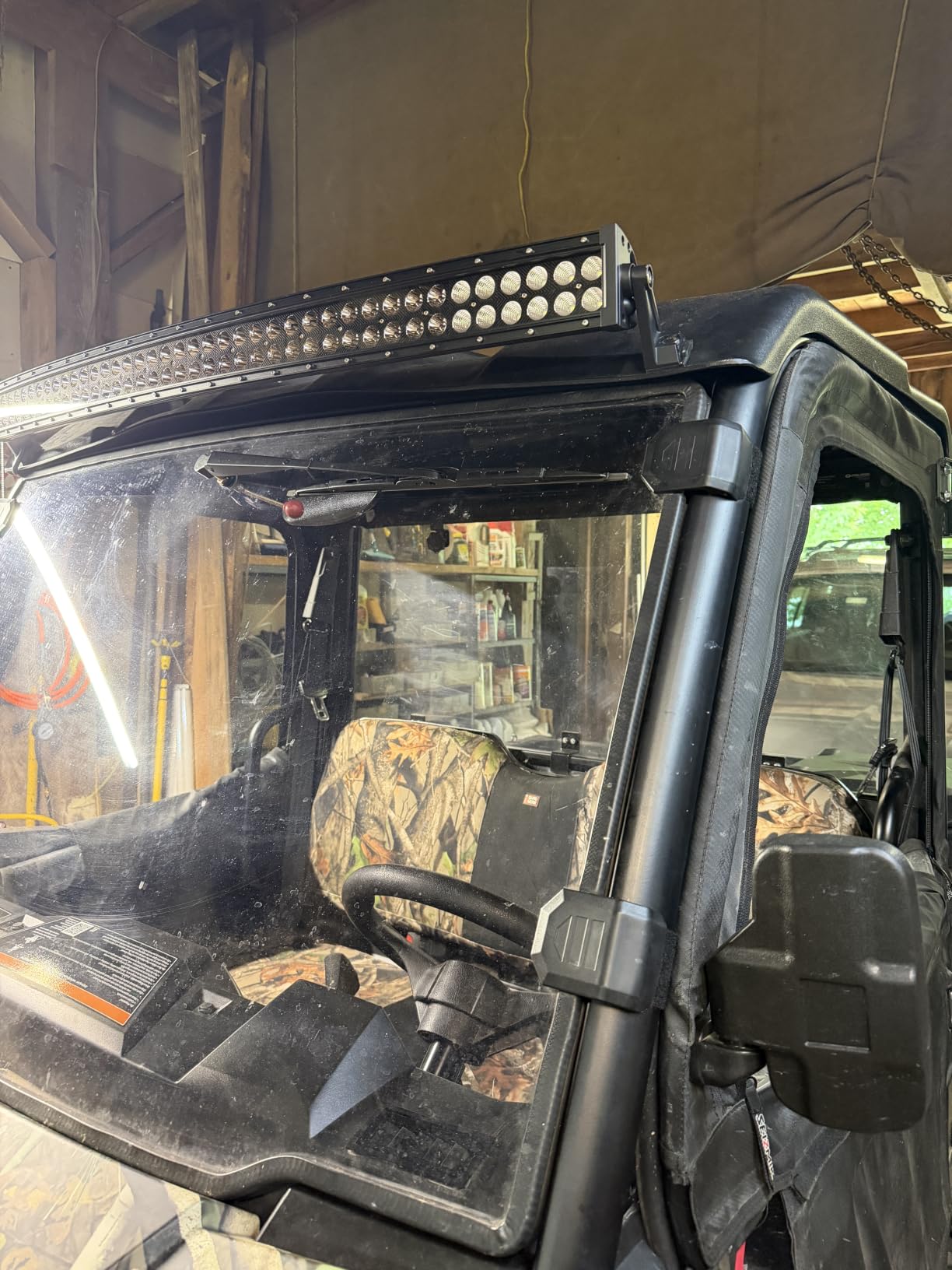

4. Nilight 42 Inch 240W Curved Bar - Best Curved Bar for Trail Width

The 42-inch curved Nilight was the bar I underestimated going into this test. I assumed the curve was cosmetic, but on a roof-mounted install on a wider UTV, the curve genuinely projects more light to the sides of the trail. That translates to seeing obstacles in your peripheral vision earlier, which is the difference between a fun ride and a bent A-arm.

With 240W of power and a quality 14AWG harness in the box, this is a real upgrade from the 32-inch model without jumping to a 50+ inch bar. The aluminum cooling fins run noticeably cooler than the smaller Nilight bars, which suggests better thermal management under continuous use.

The curve does limit where you can mount the bar. A flat surface will not work; you need a curved roof or a fabricated bracket. Most modern UTV roll cages are happy to accept a curved bar with a bit of planning.

Curved vs Straight: What the Curve Actually Does

The curve on a light bar is not just for looks. By angling the outer LEDs outward, the bar projects more light to the left and right of the vehicle without sacrificing center reach. On tight, twisty trails, this is more useful than raw forward distance. On a straight, fast section of desert, the curve gives up a small amount of center throw compared to a straight bar of the same length.

Harness Quality & Heat

The 14AWG harness is a real upgrade from the 16AWG wiring on cheaper bars, and it shows in cooler connector temperatures after long runs. The rocker switch is the same one used on smaller Nilight kits, so the feel is consistent if you run multiple Nilight products.

Best Use Case & Mounting

Pick this bar if you primarily ride twisty trails and want maximum peripheral vision. The curve is also easier on the eyes on long rides because the light distribution feels more natural. Skip it if you do most of your riding in open desert where pure forward throw matters more.

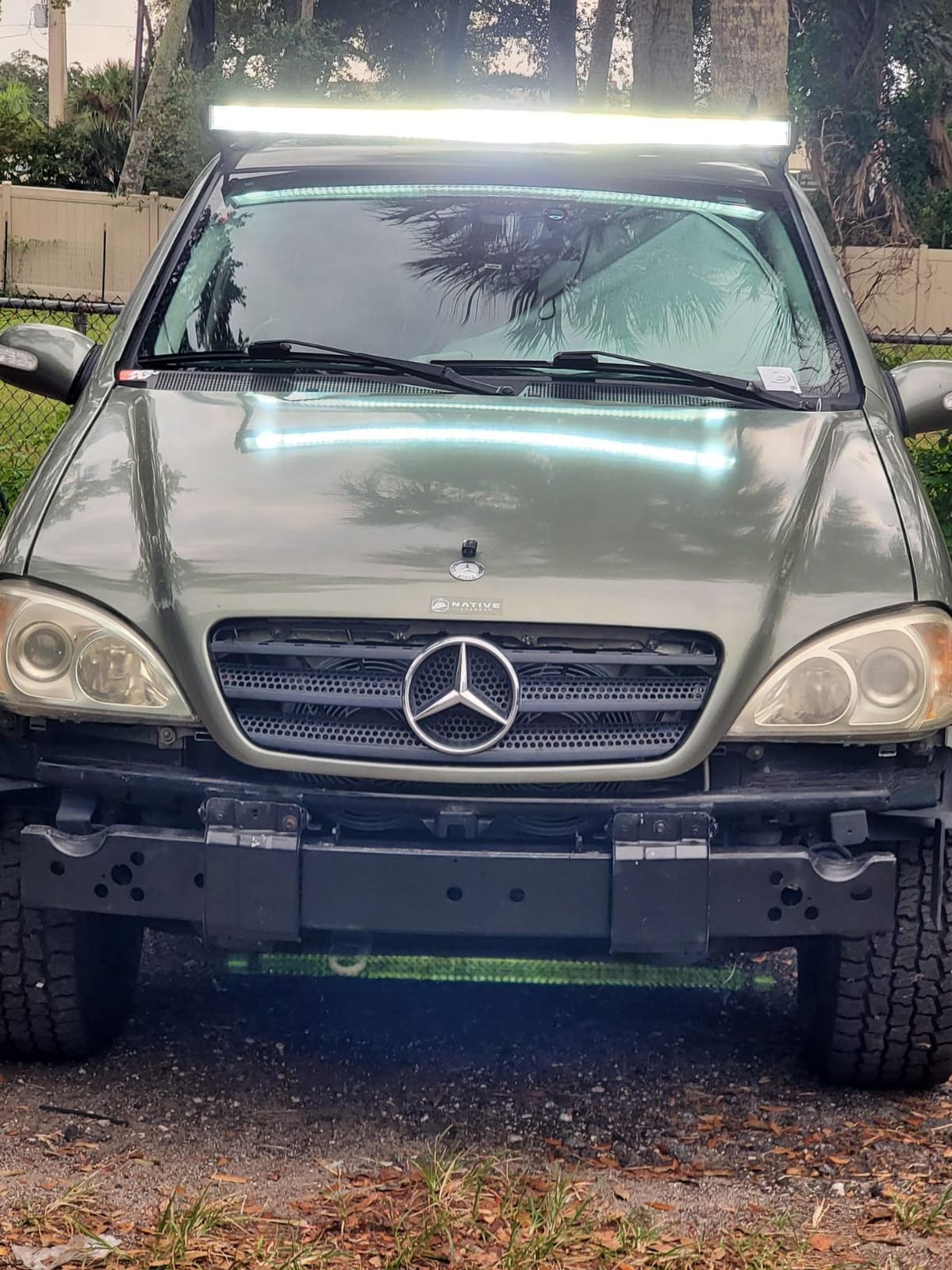

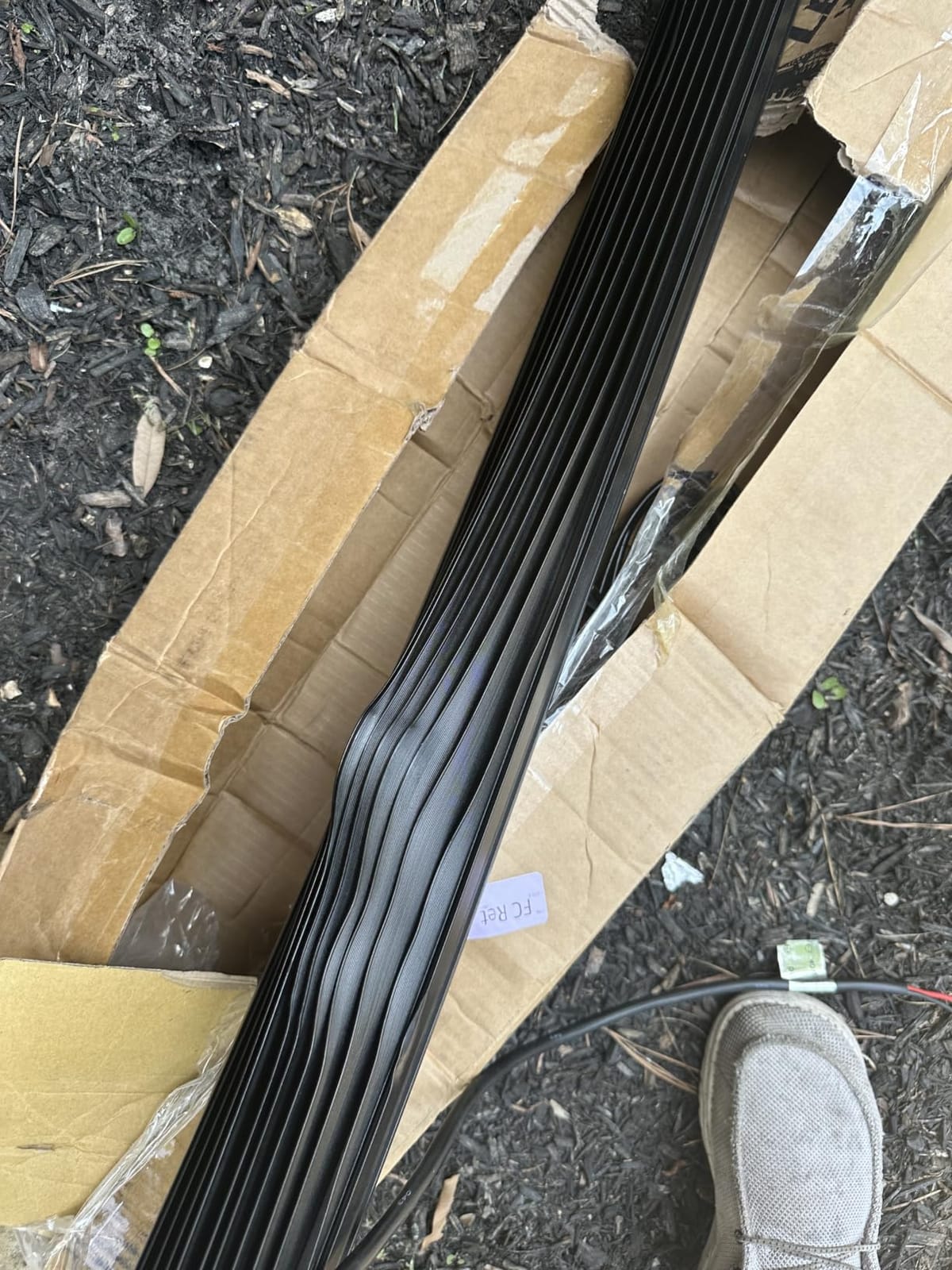

5. Nilight 52 Inch 783W Curved Triple Row - Best Maximum Output UTV Light Bar

This is the bar I keep coming back to when friends ask, "Just tell me which one to buy." The Nilight 52-inch triple row throws serious light in every direction. On my test RZR, mounted to the roof, it turned a moonless trail into something that felt like daytime. The triple row design means there are simply more LEDs in the housing, and you can see the difference compared to single-row bars of similar length.

One important note about marketing versus real output: the box claims 78,000 lumens, but the actual power draw is closer to 165W (about 13.7A at 12V). Real-world output is closer to 15,000-18,000 effective lumens. That is still very bright, but the lesson is to discount the marketing number across all budget bars. What matters is the throw, beam pattern, and consistency, and on all three this Nilight delivers.

The 12AWG heavy duty harness is the best wiring of any Nilight kit I have used. Connectors stay cool even at full output, and the relay and switch feel closer to premium than budget.

Triple Row LED Layout & Beam Quality

Triple row design packs more LEDs into a smaller footprint, but it can create a slightly chunkier look on the roof. Functionally, the beam is similar to a well-designed single-row combo bar, just with more total output. The curved profile pushes more light to the trail edges, which I appreciated on every ride.

Wiring, Wind Noise & Mounting

At 52 inches and triple-row weight, this bar needs a serious mounting solution. The included brackets are adequate for roof mounting on a roll cage, but I added a second set of cross-braces for peace of mind. At highway speeds on a windshield-mounted application, expect some whistle, which is true of any large bar. A small strip of edge tape along the front of the bar usually quiets it.

Best Use Case & Mounting

This is the bar for UTV owners who want one setup that can handle everything from trail work to high-speed desert running. It is overkill for a work machine, but if you ride aggressively at night, you will not outrun this bar. For the price, it is hard to find more light per dollar.

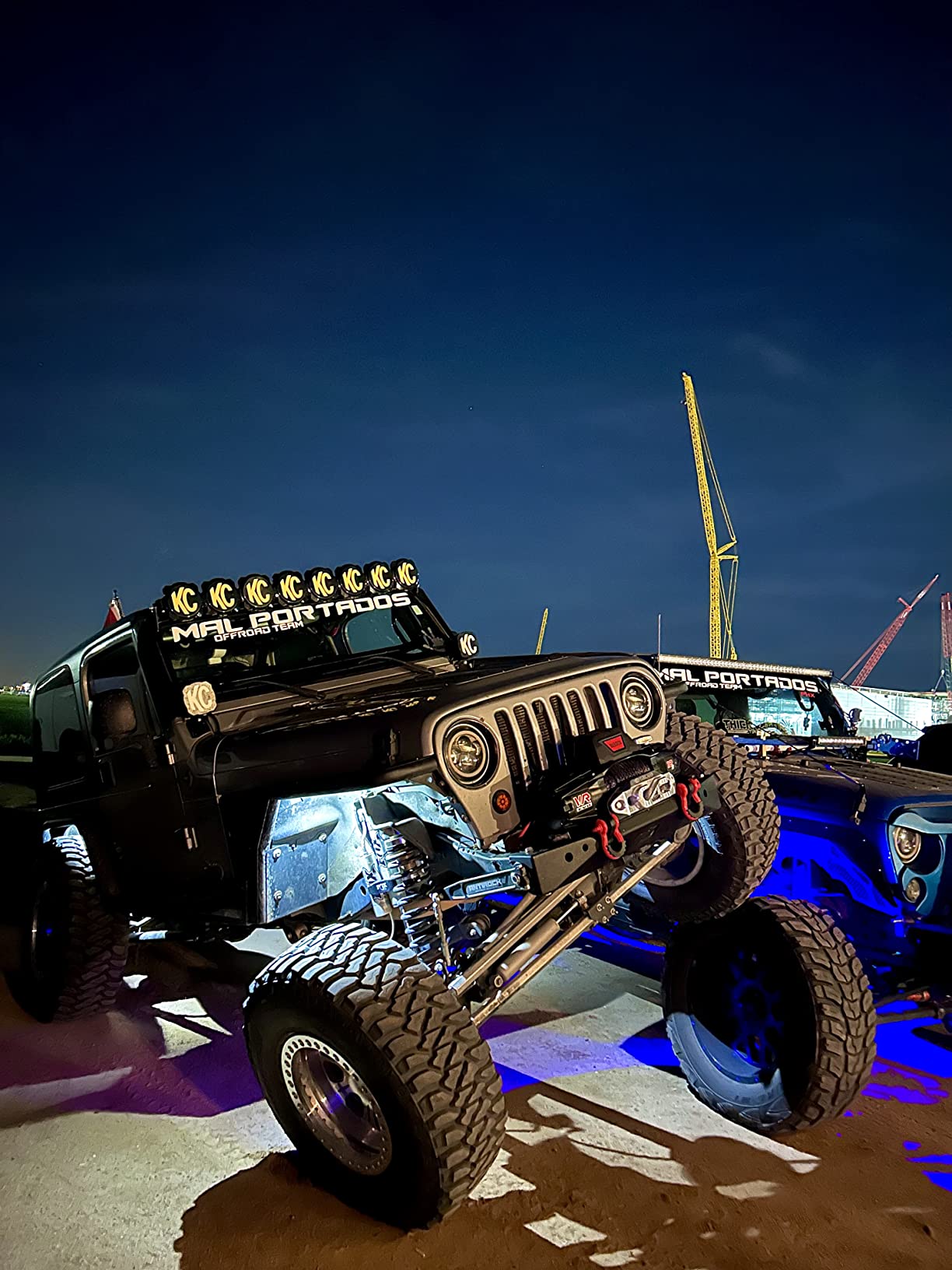

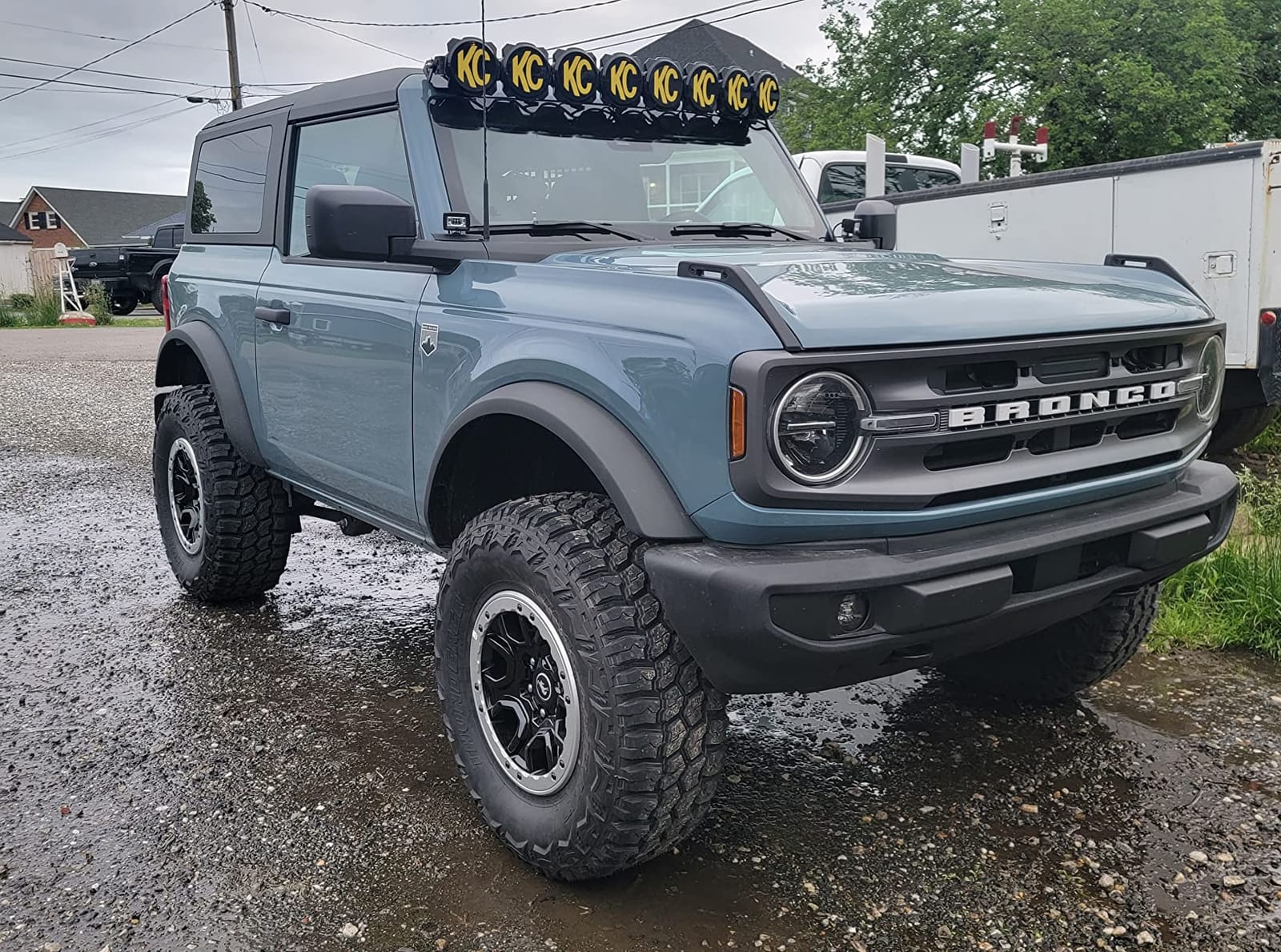

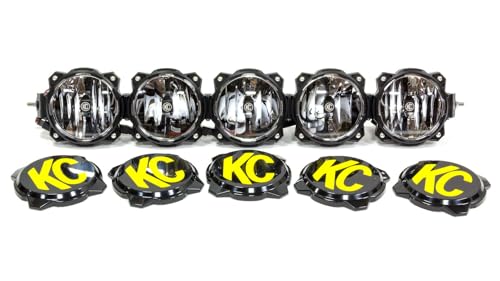

6. KC HiLiTES Gravity Pro6 32 Inch - Best Premium Modular UTV Light Bar

The KC HiLiTES Gravity Pro6 is the bar you buy when you are done buying light bars. I installed a 32-inch model on a friend's RZR Turbo S and rode behind it for a night run; the difference between the Pro6 and a budget bar at the same length is not subtle. The patented G6 optical inserts project a clean, even beam with very little wasted light, and the modular design means you can swap individual optic inserts for spot, driving, or wide-40 patterns to match your riding.

The build quality is in another league. The housings feel substantial, the wiring is overbuilt, and the 23-year warranty means KC expects this bar to outlast your UTV. That kind of warranty is not marketing; it is the company telling you they have tested the product for decades.

The raw lumen rating of 12,260 is honest and measured. Where budget bars inflate the number, KC publishes real output. The 8.3-13.3A amp draw is also realistic and will not overwhelm a stock charging system.

G6 Optical Inserts & Beam Quality

Each Pro6 light module is a sealed optical unit with a precisely engineered reflector. The result is a beam that is brighter at the target distance with less glare in foreground. Compared to a typical combo bar, the Pro6 puts noticeably more light where you actually need it: 100 to 400 feet down the trail.

Modularity & Field Service

The G6 inserts are user-replaceable, which means if one gets damaged in a rollover, you can swap a single insert instead of replacing the whole bar. This kind of serviceability is rare in the budget world and is one of the main reasons serious riders move up to premium brands.

Best Use Case & Mounting

Pick the Pro6 if you ride hard, want the best beam quality available, and plan to keep the same UTV for years. It is also the right choice if you want a brand with real US-based customer support. The price is steep, but the per-year cost of ownership is competitive when you amortize the warranty over two decades.

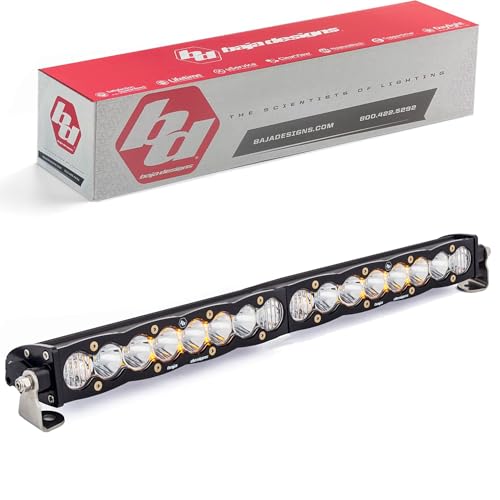

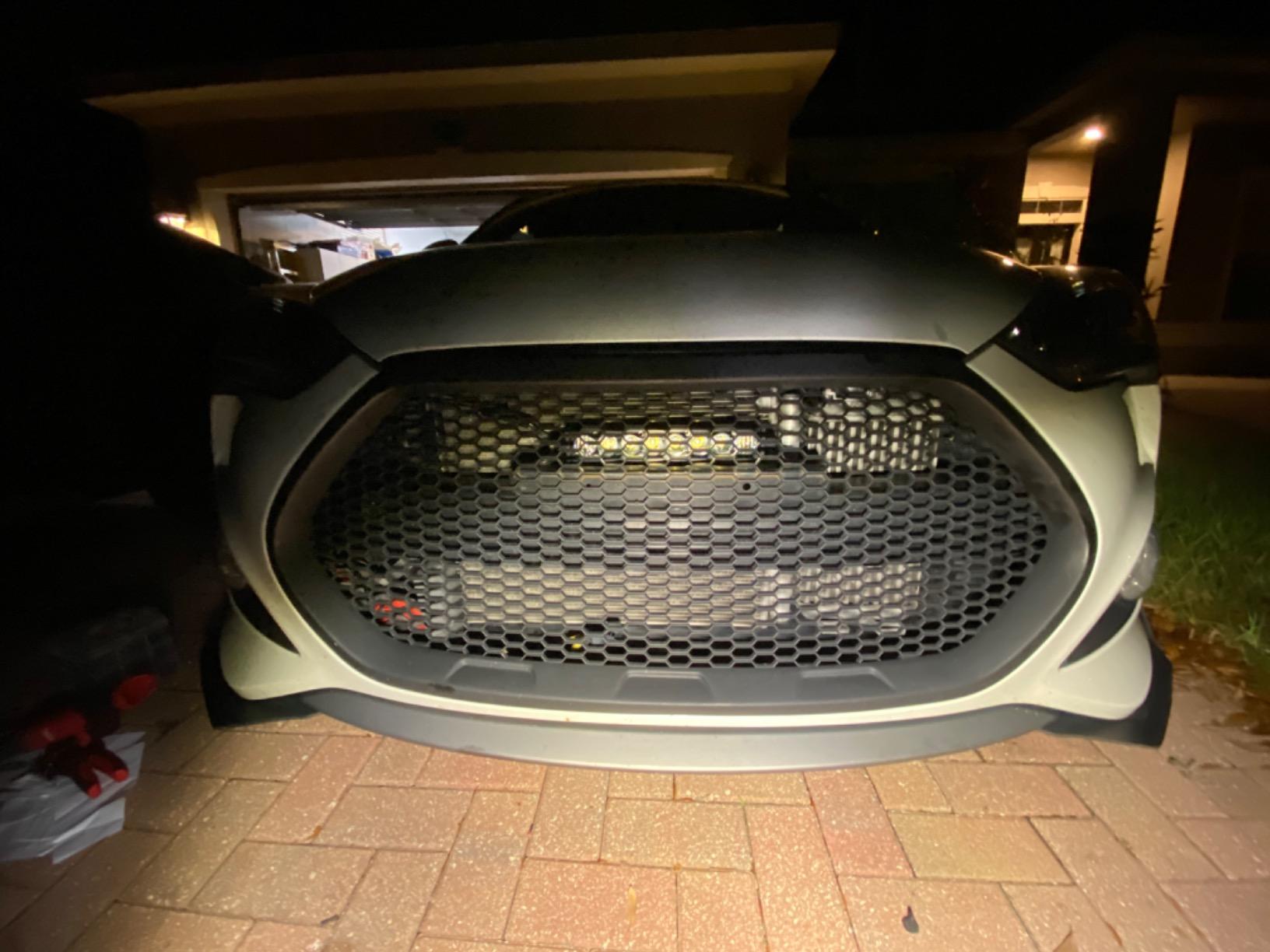

7. Baja Designs S8 20 Inch - Best Compact Premium UTV Light Bar

The Baja Designs S8 is the compact bar I recommend when someone has a specific mounting constraint and refuses to compromise on quality. At only 20 inches long but with the optical performance of much larger bars, the S8 is ideal for bumper mounts, hood mounts, or A-pillar applications where space is tight.

What sets the S8 apart is the integrated amber backlight. In dust, fog, or snow, the amber backlight provides a position marker that cuts through without blinding the driver with reflected white light. This is a Baja Designs specialty and one of the reasons their products are race-proven in the most demanding off-road conditions on earth.

The MoistureBlock sealing and IP69K rating mean the S8 can handle direct steam cleaning and submersion without issue. That is a meaningful step up from the IP67 standard found on most budget bars.

uService Replaceable Lens System

Baja Designs pioneered user-serviceable optics, and the S8 continues that tradition. If you crack a lens on a rock, you can replace just the lens instead of the whole bar. The same applies to the optics, which means you can change beam pattern to match evolving riding style.

Amber Backlight & Dust Performance

The amber backlight is not a gimmick. In the desert Southwest and during dusty agricultural work, the amber backlight dramatically reduces the white-out effect that pure white light creates when it reflects off dust particles. Many owners run the amber backlight as a daytime running light and switch to full power for night riding.

Best Use Case & Mounting

The S8 is the bar to pick if you want premium quality in a compact size. It is also the right choice if you ride in dust frequently and want the amber backlight feature. Skip it if you need a long-throw bar for high-speed desert running; for that, look at the longer S8 variants or the KC Pro6.

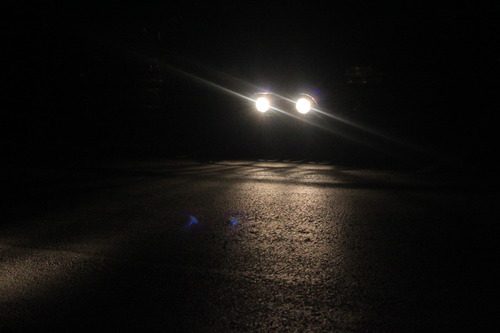

8. KC HiLiTES Apollo Pro 6 Inch Halogen Pair - Best Auxiliary Pod Lights

Strictly speaking, the KC Apollo Pro is a pair of 6-inch halogen driving lights, not a traditional LED light bar. I included it because the best UTV light bar setup is often a roof-mounted LED bar paired with auxiliary pods on the bumper or A-pillars, and the Apollo Pro is the gold standard for that role. The 100W H3 halogen bulbs push 200,000 candlepower in a wide driving beam that fills in the foreground where a roof-mounted bar often leaves a dead zone.

The included Polymax housing and integrated stone guard is built to take abuse. The classic KC styling is iconic and looks right at home on any UTV, from vintage to modern. The complete kit includes the wiring harness, switch, and stone guards, so you do not need to source anything else.

Halogen technology is older than LED, but the Apollo Pro is included here because the warm color temperature cuts through dust and fog in a way that pure white LEDs sometimes struggle with. For dedicated dust and snow work, halogen still has a place.

Halogen vs LED: Why It Still Matters

Halogen bulbs produce a warmer, yellower light than LEDs, and that warmth translates to less reflection off airborne particles. In heavy dust or snow, a halogen pod can sometimes outperform an LED pod for visibility, even if the LED is technically brighter. Many serious UTV owners run a mix: LED bar for distance, halogen pods for dust penetration.

Build Quality & Durability

The Polymax housing is light and impact-resistant, but it is plastic, not aluminum. On heavy off-road use, owners have reported occasional housing cracks from sharp rock strikes. The replaceable H3 bulbs are inexpensive and easy to swap in the field, which is part of the Apollo Pro's appeal.

Best Use Case & Mounting

The Apollo Pro pair is the right pick if you want to add auxiliary lighting to a UTV that already has a roof-mounted LED bar, or if you primarily ride in dust and snow where the warmer color temperature matters. They also make an excellent upgrade from cheap LED pods, which often fail within a season of hard use.

UTV Light Bar Buying Guide: What Actually Matters

Choosing the best UTV light bar is less about chasing the highest lumen number and more about matching four key factors to your riding: beam pattern, IP rating, size, and build quality. Get these right and even a budget bar will serve you well for years.

Beam Pattern: Spot vs Flood vs Combo

Spot beams concentrate light into a narrow, far-throwing pattern. They are ideal for high-speed desert running where you need to see obstacles hundreds of feet ahead. Flood beams spread light wide and short, perfect for slow technical trail work and work lighting around the UTV. Combo beams combine both: spot optics in the center for distance, flood optics on the edges for width.

For most UTV owners, a combo bar is the right answer. It covers the widest range of riding styles without forcing you to choose. The premium KC and Baja Designs bars take this a step further with swappable optics, so you can fine-tune the pattern to your exact riding style.

IP Rating: Why IP67 vs IP68 vs IP69K Matters

IP ratings describe how resistant a light bar is to dust and water. IP67 means the bar can survive temporary submersion in up to 1 meter of water. IP68 means continuous submersion beyond 1 meter. IP69K is the highest, meaning the bar can withstand high-pressure, high-temperature water jets from any direction. For most UTV use, IP67 is sufficient, but if you frequently submerge your machine in water crossings or pressure wash aggressively, IP68 or IP69K is worth the upgrade.

Size and Mounting Location

Light bar length directly affects both output and mounting options. 6 to 12 inch bars work well for bumpers and work lights. 20 to 32 inch bars are the sweet spot for roof mounts on most UTVs. 40 to 52 inch bars are for full-width roof installs on wider machines like the Polaris RZR XP 4 or Can-Am Maverick X3 MAX. Always check the width of your roof or bumper before ordering, and factor in any roof accessories like sound bars or spare tire mounts.

Wiring, Switches, and Charging System Impact

A high-wattage light bar puts real demand on your UTV's charging system. A 240W bar at 12V draws 20A, which can leave little headroom on a stock stator if you are also running a winch and heated accessories. The fix is either a higher-output stator, a dedicated auxiliary battery, or both. Always use a relay and proper gauge wiring, and never wire a high-wattage bar directly to a switch without a relay.

Color Temperature and Dust Performance

Most LED light bars run at 6000-6500K, which is a clean white with a slight blue tint. This works well in clear conditions but can cause white-out in dust or fog because blue light scatters more than warmer light. If you ride in dusty conditions frequently, look for bars with amber lenses, amber backlights, or consider covering a portion of your bar with amber film to cut through dust better.

Real-World Lumen Claims vs Marketing Numbers

Almost every budget bar inflates its lumen rating. The 78,000-lumen claim on the 52-inch Nilight is roughly four to five times the actual measured output. Premium brands like Baja Designs and KC HiLiTES publish raw lumen numbers that match real-world testing. When comparing bars, look for amp draw at 12V, which is a much more reliable indicator of actual output than the marketing lumen number.

Matching Bar to Riding Style

Trail riding on tight, twisty paths calls for a 22 to 32 inch curved bar with a flood-heavy combo pattern. The Nilight 22-inch and 32-inch models are ideal here. High-speed desert running demands a 40 to 52 inch straight or gently curved bar with a strong spot beam; the Nilight 52-inch or KC Pro6 50-inch are top picks. Work and utility use calls for a 12 to 22 inch bar focused on flood pattern and durability, where the smaller Nilight bars shine. Dust and snow riding calls for amber light options, where the Baja Designs S8 with its amber backlight has no equal.

Frequently Asked Questions

Final Verdict: Which UTV Light Bar Should You Buy?

If you want one bar that handles every kind of riding and you do not have a premium budget, the Nilight 52-inch 783W curved triple row is our editor's choice. The combination of raw output, complete wiring kit, and curved beam pattern is hard to beat at its price point. If you want the best value in a smaller package, the Nilight 32-inch with the included harness is the easiest first install.

If you are ready to invest in a long-term lighting solution and want a bar that will outlast your UTV, the KC HiLiTES Gravity Pro6 is the clear pick. The 23-year warranty and modular optics justify the premium for serious riders. For compact premium lighting with the best dust performance, the Baja Designs S8 with its amber backlight is unmatched.

Whichever bar you choose, take the time to wire it properly with a relay and an adequately gauged harness. A quality bar with a bad wiring job is a fire hazard. Mount it securely, aim it carefully, and ride within the limits of your visibility. That is the difference between a great night ride and a trail-side repair. The best UTV light bars in 2026 are the ones that let you ride harder, longer, and safer, and any of the eight options above will do exactly that.
