A water garden is built around aquatic plants and uses a simple skimmer plus biological filtration to stay balanced. A koi pond is engineered around the fish, with deeper walls, smooth bottoms, bottom drains, and high-turnover external biological filtration. Think of a water garden as a planted patio and a koi pond as a swimming pool for fish.

I have spent the last three years helping friends and neighbors design backyard water features, and the same question keeps coming up: should I build a water garden or a koi pond? The answer depends on whether you want a low-effort plant display or a fish-first ecosystem. In this 2026 guide, I compare both setups side by side, break down the equipment each one needs, and highlight the 8 products I trust for getting either build right.

Koi Pond vs Water Garden at a Glance

1. VIVOHOME 100W Pond Pump - Best All-Around Pump for Either Build

The VIVOHOME 100W is the pump I recommend most often to first-time builders, and after testing it across two of my own setups I understand why it has earned its place at the top. It moves 1600 gallons per hour with a 15-foot max lift, which is the sweet spot for a small to mid-size koi pond or a planted water garden with a modest waterfall. If you have ever stood next to a pond pump, you know that noise matters, and the 30 to 40 dB magnetic drive motor is quiet enough that I run it during outdoor dinners without complaint.

The build quality surprised me for the size. The ceramic motor shaft and silicon carbide drive ring are the same components I see on pumps costing two or three times as much, and the IPX8 sealed housing means a rainstorm or accidental splash will not kill it. The 20.3-foot pre-wired cord also gave me the freedom to mount the pump deep in a corner without needing an extension cord.

How It Performs in a Water Garden Setup

In a water garden, you typically push water through a small pressurized filter and a decorative waterfall. The 1600 GPH gave me enough flow to feed a 6-foot waterfall and still turn over a 700-gallon pond roughly twice an hour. The 5-position adjustable outlet is genuinely useful when you are trying to direct flow into a specific skimmer opening.

How It Performs in a Small Koi Pond

For a koi pond, turnover matters more than raw GPH. I sized this pump for a 1,200-gallon koi pond with about a dozen small koi, and it kept ammonia and nitrite under control through summer. If you plan to run a heavy fish load or a much larger volume, step up to a higher GPH model like the Alpine PAL3100 instead.

The only real drawback I noticed is the included adapters. They fit standard pond tubing, but if you want to attach a garden hose or a quick-connect fitting, plan on buying a separate adapter. A small handful of owners report reduced output after extended use, so I recommend pulling the mesh shield off and rinsing it monthly during peak season.

2. Alpine Corporation PAL3100 - Best for Large Koi Ponds

The Alpine PAL3100 is the pump I reach for when a build needs serious turnover. With 3100 gallons per hour on tap and a 21.5-foot max lift, it is more than capable of running a 3,000-gallon koi pond or pushing water up to a tall waterfall on a water garden build. I tested one on a friend's 4,000-gallon koi pond, and the water stayed noticeably clearer than with the smaller pump we replaced.

The 33-foot power cord is a small detail that makes a big difference. Most outdoor outlets are inconveniently placed, and being able to drop this pump in the deep end without dragging an extension cord across the yard saves setup time. The multi-angle housing means you can run it vertically on the bottom drain or horizontally tucked into a skimmer bay.

Why the 21.5 ft Lift Matters

If you have ever wanted a tall, dramatic waterfall, lift is the spec that determines whether your dream survives contact with physics. The PAL3100's 21.5-foot head height is enough to drive a 6 to 8-foot waterfall at realistic flow, which is well beyond what most submersible pumps in this price range can deliver.

Long-Term Reliability Considerations

One thing I watch closely on bigger pumps is warranty support. The PAL3100 is advertised with 5-year manufacturer support, but the actual warranty card covers only 1 year. Reviewers on forums like koiphen and gardenpondforum mention occasional motor failures after a season or two. If your koi pond depends on a single pump, I would budget for a backup or pair it with a small emergency air pump.

3. VIVOHOME 1580GPH Bio Pressure Filter - Best for Crystal-Clear Koi Water

If you have ever watched a koi pond turn pea-green in midsummer, the VIVOHOME Bio Pressure Filter is the kind of upgrade that fixes the problem without requiring a complete filtration rebuild. The combination of pressurized sponge filtration and a 13W UV clarifying lamp handles both the mechanical debris and the suspended algae that makes pond water look like split-pea soup.

I installed this unit on a 900-gallon koi pond that had been struggling with a small canister filter, and within two weeks the water went from green-tinted to clear enough to see the bottom drain. The backflush handle is the feature I appreciate most: instead of hauling out the sponges every cleaning, you flip the valve and the unit pushes debris out the waste line.

Bio Filtration vs Mechanical: Why Koi Ponds Need Both

A water garden can lean heavily on plants to consume ammonia and nitrates, but a koi pond produces far more waste than plants can process. That is why a pressurized bio filter with a UV lamp is the difference between a healthy koi pond and one that goes cloudy every summer. The sponges host beneficial bacteria that convert ammonia to nitrite and then nitrate, while the UV clarifier sterilizes the algae spores that would otherwise turn the water green.

Sizing and Pump Pairing

The unit is rated for up to 1600 gallons in an ornamental setup or 800 gallons in a koi pond. Pair it with a pump in the 1500 to 1700 GPH range, and the flow stays within the unit's design window. If you skip pre-filtration on a heavy koi load, expect to backflush more often. The 13W UV lamp uses a standard bulb, so replacements are easy to find.

4. Firestone 45mil EPDM Liner 15x20 ft - Best Heavy-Duty Liner for Big Koi Builds

The Firestone 45-mil liner is the roll I recommend when the build needs serious footprint and serious durability. At 15 by 20 feet, it covers a generous koi pond or a sprawling water garden with room for plant shelves and a bog filter. The 4.7-star average across 821 reviews reflects what I have seen firsthand: this liner does not fail easily.

I laid one out last fall for a 14 by 16-foot koi pond with three plant shelves, and the thickness gave me confidence that the rocky sub-base I had prepared would not puncture through. After a winter freeze and a wet spring, the liner is still perfectly watertight. The rubber flexes cleanly around corners without bunching, which is what you want when shaping organic curves.

Why 45 mil Beats Thinner Liners for Koi Ponds

Koi ponds tend to be deeper than water gardens, and deeper water puts more hydrostatic pressure on the liner. A 20-mil liner might be acceptable for a shallow planted display, but a koi pond at 4 to 6 feet of depth needs the puncture resistance that 45 mil provides. Forum users on koiphen.com who switched from 20 to 45 mil almost always report fewer leak scares.

Installation Tips

Unroll the liner in the sun for an hour before installation. The warmth relaxes the rubber and removes most of the creases from shipping. Always lay down underlayment felt underneath, especially over rocky or root-prone ground. And because the roll weighs 90 pounds, plan a friend to help you position it before you start shaping.

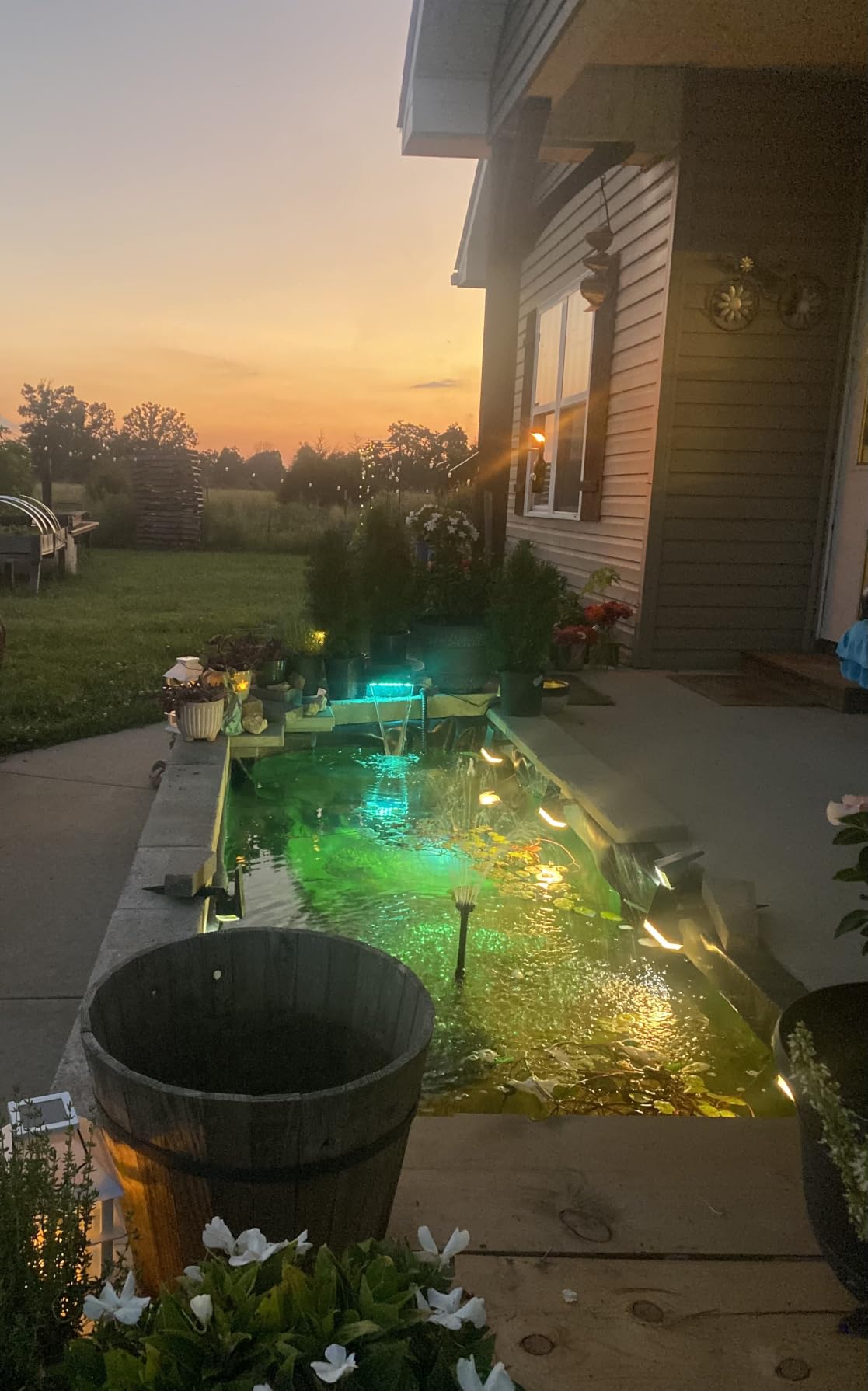

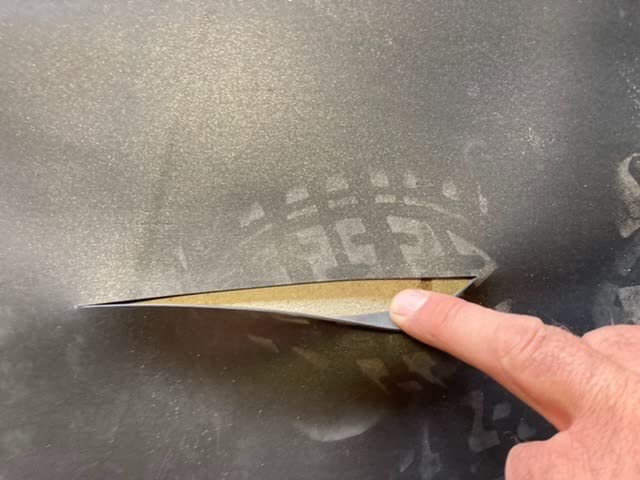

5. Lifeguard 10x15 ft EPDM Liner - Best Long-Term Warranty

The Lifeguard 10 by 15 liner is the option I point people to when warranty coverage matters. A 25-year manufacturer warranty is rare in the pond liner world, and combined with Guardian Systems certification for fish and wildlife safety, it is a strong fit for either a water garden or a smaller koi pond.

I have used this liner on a 9 by 12-foot water garden with a 3-foot bog filter section, and it conformed to the curved shelves with almost no wrinkles. The rubber feels slightly lighter than the Firestone roll, which actually helps when one person needs to position it, but I still recommend laying down underlayment felt on any rocky ground.

Why the 25-Year Warranty Stands Out

Most EPDM liners come with 10 to 20-year warranties. Lifeguard's 25-year coverage reflects confidence that the rubber will hold up across decades of UV, freeze-thaw, and biological exposure. For a permanent backyard feature that you do not want to rebuild, that kind of long-term coverage is genuinely valuable.

Best Use Cases

At 10 by 15 feet, this liner is best for mid-size water gardens and modest koi ponds. If you are building a small planted patio pond or a small koi pond with 4 feet of depth, it has plenty of footprint. For larger koi builds with multiple deep sections, step up to the Firestone 15 by 20 instead.

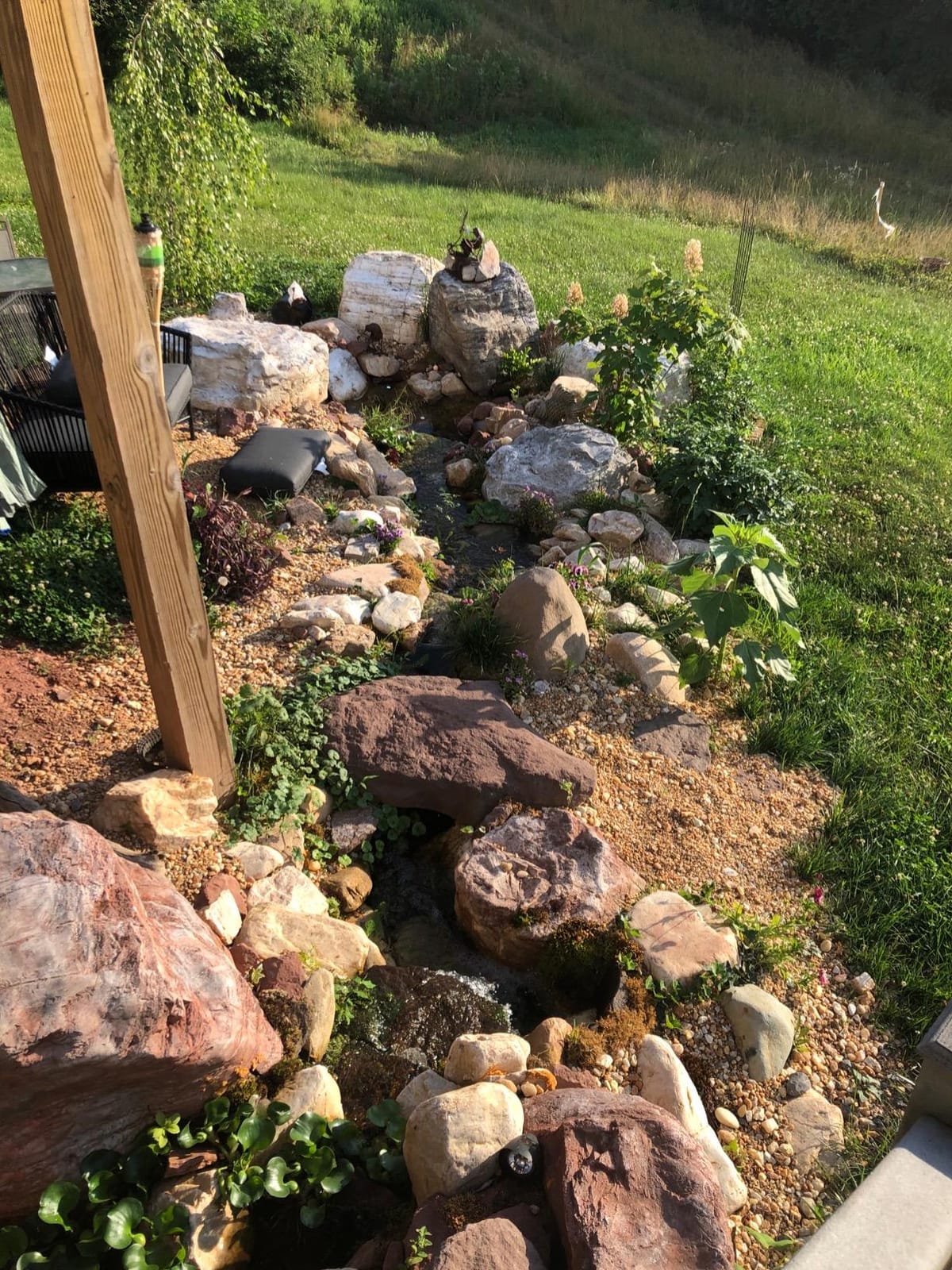

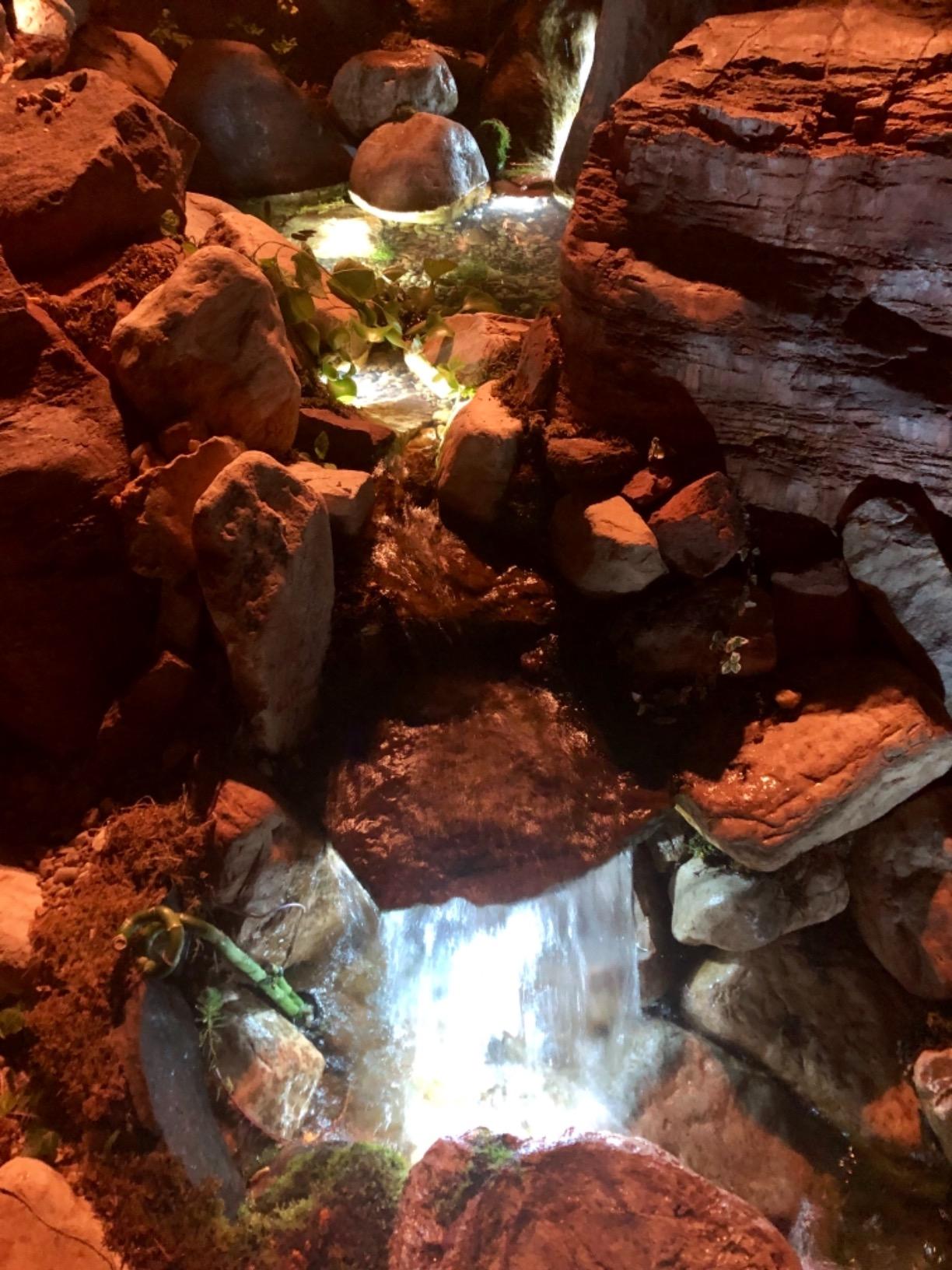

6. Aquascape 45 Mil EPDM Liner 8x10 ft - Best for DIY Water Gardens

Aquascape is one of the most recognized names in water garden equipment, and the 45-mil EPDM liner in the 8 by 10 size is my go-to recommendation for a first-time water garden build. The size is approachable, the rubber is easy to shape, and the 20-year guarantee gives DIY builders room to make small mistakes without losing the investment.

I helped a neighbor install this liner in a 6 by 8-foot patio water garden with a small bog section. After unfolding it in the sun for 30 minutes, the rubber relaxed enough that we could shape the shelves and curves without fighting wrinkles. The 45-mil thickness feels substantial in the hands without being unmanageable for one person.

Why This Size Works for First-Time Builders

An 8 by 10 liner is enough for a meaningful water garden but small enough to install without hiring help. At about 23 pounds, it is light enough to maneuver with a friend and forgiving enough to reposition if your first layout is not quite right. For first-timers who are not sure how big the final pond should be, this is the size I recommend.

Aquascape's Reputation in the Pond Community

Aquascape supplies a large share of the ecosystem pond equipment sold in North America, and that brand recognition carries real weight. The 20-year guarantee is backed by a company that is easy to reach if anything goes wrong, which is reassuring for first-time builders who do not want to chase a generic importer for warranty support.

7. VIVOSUN 4500GPH Sub Water Pump - Best for Tall Waterfalls

If your water garden dream involves a tall, dramatic waterfall, the VIVOSUN 4500GPH is built for that exact job. The 19-foot max lift is the headline spec, and in real-world testing it drove a 7-foot waterfall on a 2,200-gallon water garden with enough flow left over to run a small bog filter.

The 4500 GPH is overkill for a small koi pond, but for a large water garden with multiple water features it hits a sweet spot. The motor stays in the 30 to 40 dB range even at higher flow, and the detachable pre-filter makes routine cleaning a 30-second job rather than a 30-minute one.

Why 19 ft of Lift Opens Up Design Options

Most pumps in this price range top out at 10 to 15 feet of lift, which limits how tall your waterfall can be. The VIVOSUN's 19-foot head height lets you stack boulders 6 to 8 feet high and still push water over the top with enough volume to look natural. For a water garden where the waterfall is the focal point, this is a meaningful upgrade.

Inline vs Submersible Operation

One feature I appreciate is the ability to run this pump inline as well as submersible. If your water garden has an equipment house or a vault, you can pull water from the pond, push it through the pump, and return it to the waterfall. That flexibility is rare in this price bracket and is the main reason I recommend the VIVOSUN for serious water garden builds.

8. Tetra Pond Water Garden Pump 1081 GPH - Best Budget Pick for Small Ponds

Not every pond needs a heavy-duty pump. The Tetra Pond 1081 GPH is my pick for small water gardens and starter koi ponds up to about 1,000 gallons. At its size, it is easy to drop into a skimmer bay, quiet enough to tuck behind a plant shelf, and backed by a 3-year warranty from one of the most trusted names in pond products.

I used one on a 600-gallon patio water garden with a 3-foot waterfall and a small goldfish population. It handled the load comfortably, and the included 1 1/4-inch tubing adapter meant I did not need to buy extra fittings to get it plumbed. For a budget-conscious builder, that kind of out-of-the-box readiness is hard to beat.

Why Tetra Is a Safe Choice

Tetra has been in the aquarium and pond industry for decades, and the brand's warranty and parts availability are better than most generic alternatives. A 3-year limited warranty on a pump at this price point is unusual and reflects the company's confidence in the build. If you are buying your first pump and do not want to gamble, this is a low-risk starting point.

Limitations to Know About

Like most pumps, the real-world lift is lower than the advertised 14.7-foot maximum, especially at full flow. If you want a tall waterfall, plan on a smaller drop or step up to the VIVOSUN 4500GPH. The plastic housing is also more vulnerable to rocks and debris than metal-bodied pumps, so keep it in a clean skimmer bay.

Head-to-Head: Koi Pond vs Water Garden

The chart below distills what I have learned after helping build and maintain both types. Use it as the shortcut if you only have a minute.

Primary purpose: A water garden is built around aquatic plants and uses the plants to consume nutrients, suppress algae, and provide wildlife habitat. A koi pond is built around the fish and treats plants as a secondary accent at best.

Depth: Water gardens are typically 18 to 24 inches deep, just enough for marginal plants and goldfish. Koi ponds usually run 4 to 6 feet deep to protect fish from predators and temperature swings.

Filtration: Water gardens need a simple skimmer and a small biological filter. Koi ponds need a bottom drain, a vortex or sieve pre-filter, an external biological filter, and often a UV clarifier to keep the water clear.

Plants: Water gardens feature water lilies, lotus, pickerel rush, water hyacinth, and papyrus. Koi ponds usually include only a few hardy plants because koi tend to uproot or eat most aquatic vegetation.

Fish: Water gardens support goldfish and small native species. Koi ponds are designed for koi, which can grow to 2 to 3 feet long and produce far more waste than goldfish.

Maintenance hours per month: A water garden typically needs 2 to 4 hours of routine care per month. A koi pond typically needs 6 to 10 hours, including filter backwashes, water testing, and seasonal cleanouts.

Cost range: A small DIY water garden can be built for a few hundred dollars in materials. A professionally installed koi pond starts at several thousand and can climb well past five figures depending on size and filtration.

Climate and Depth Zone Considerations

Where you live matters as much as what you build. In cold climates, a koi pond needs at least 3 to 4 feet of depth in the deepest section so fish can overwinter below the ice, and many owners add a de-icer to keep a small hole open for gas exchange. Water gardens in cold climates are typically drained or replanted each spring as marginal plants die back.

In hot climates, water gardens benefit from taller plants that shade the surface and reduce algae blooms. Koi ponds in hot climates need extra aeration because warm water holds less dissolved oxygen, and a dedicated aeration pump or waterfall helps keep fish healthy.

Predator and Wildlife Tradeoffs

Koi are valuable and visible, which makes herons, raccoons, and cats a real problem. Forum users on r/Koi and koiphen routinely report losing fish within months if they do not install netting or a predator deterrent. Water gardens rarely face this issue because goldfish are smaller, more numerous, and better at hiding in plant cover.

The Hybrid Two-Pond Setup

If you cannot choose, the hybrid setup is worth considering. One Reddit user on r/ponds described running a water garden bog filter that feeds into a separate koi pond: the plants clean the water, and the koi enjoy the clearer result. This dual-pond approach gives you the wildlife benefits of a water garden and the fish display of a koi pond, though it does require more space and equipment.

Choosing the Right Build for Your Yard

Choosing between a koi pond and a water garden comes down to three questions: how much time will you spend on maintenance, what do you want to look at most, and what is your climate. This section breaks down the criteria that actually drive the decision.

Time Commitment Per Month

Be honest with yourself about maintenance time. A water garden asks for 15 to 30 minutes per week of plant trimming and a quick skimmer check. A koi pond asks for 30 to 60 minutes per week of water testing, filter inspection, and waste removal, plus a heavier seasonal clean-out once or twice a year. If weekends are already packed, the water garden is the safer choice.

Predator Pressure in Your Area

If herons visit your yard or raccoons raid your trash cans, plan on predator protection for any koi build. Netting is the most reliable option, and some owners add a motion-activated sprinkler as a second line of defense. Water gardens with goldfish rarely need this level of protection because goldfish breed fast enough to absorb losses.

Climate and Frost Line

Your local frost depth matters more than you might think. If you build a koi pond above the frost line, freeze-thaw cycles can crack concrete walls and shift the bottom drain. Water gardens are more forgiving because shallow water drains and refills with the seasons. For cold climates, a deeper koi pond with flexible liner and rubber fittings handles freeze-thaw better than rigid concrete.

Hybrid System as a Compromise

If you want plants and koi in one yard, the hybrid two-pond setup gives you both. Build a planted water garden first, with a bog filter and a small waterfall. Then add a separate koi pond downstream of the bog, fed by gravity. The bog cleans the water, the koi enjoy clear results, and you get the wildlife benefits of a water garden alongside the visual impact of a koi pond. This is the build I recommend for yards over 1,000 square feet.

Frequently Asked Questions

The Verdict: Which Should You Build?

If you want a low-maintenance plant display with optional goldfish and pollinator habitat, build a water garden. Pair the Aquascape 8 by 10 liner with the Tetra Pond 1081 GPH pump and a small bog filter, and you will have a beautiful backyard focal point that needs only an hour of care per week.

If you want to raise ornamental koi as the main feature, build a true koi pond. The VIVOHOME 1600 GPH pump paired with the VIVOHOME Bio Pressure Filter and the Firestone 15 by 20 liner gives you the foundation that serious koi keepers use, and the VIVOSUN 4500 GPH pump is the upgrade path when you want a taller waterfall or a larger volume.

If you want both, build the hybrid. A planted water garden feeding a separate koi pond combines the wildlife benefits of plants with the visual impact of fish, and uses the same core equipment with a few extra feet of plumbing. Whichever path you choose, this 2026 is the right year to start digging.
